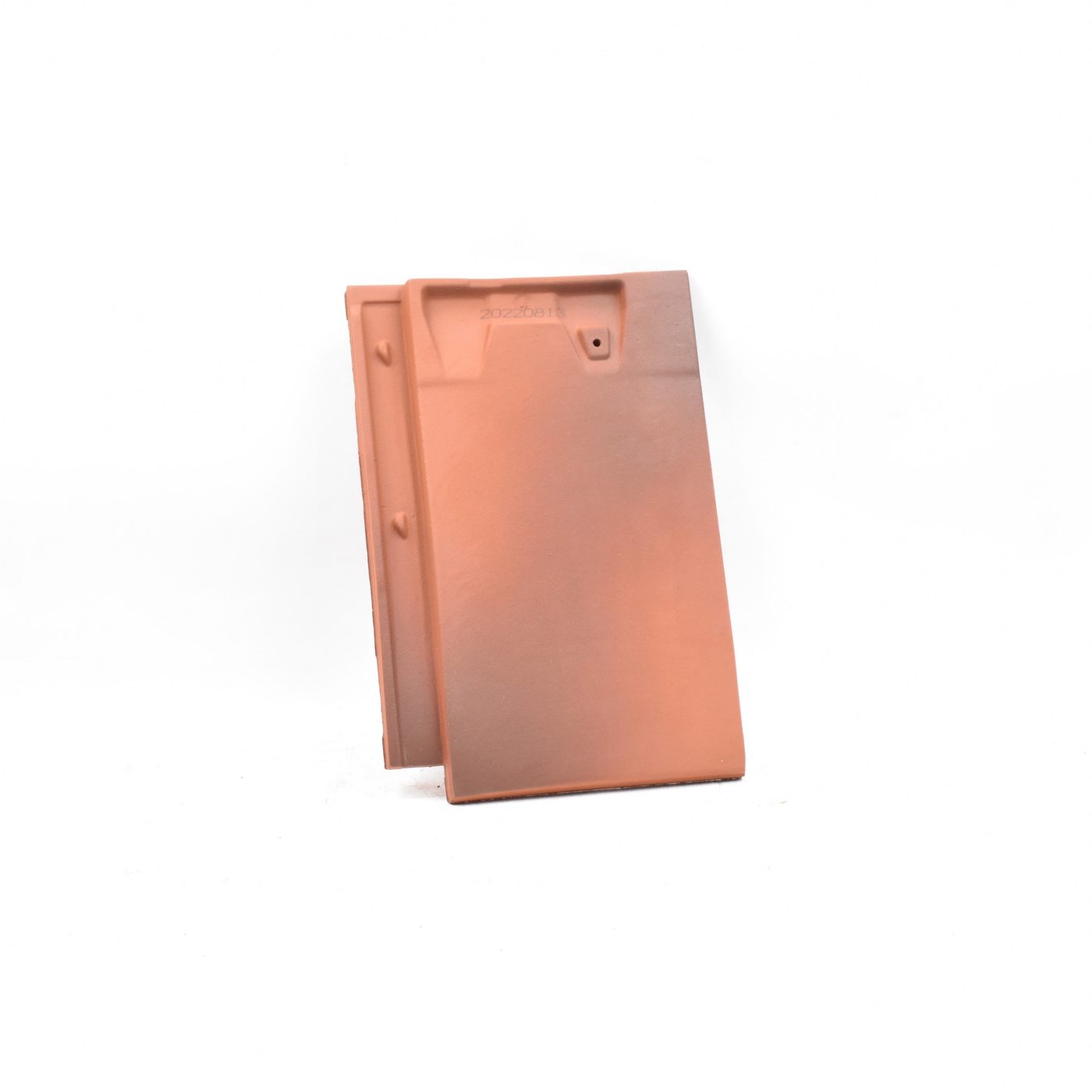

2020 Flanders

The 20/20 roof tile is a modern take on the traditional plain tile, using a modern interlock to provide greater flexibility and performance. Pressed from natural alluvial Humber clay, this premium material delivers improved longevity and natural beauty. The clay's irregularity adds charm and texture to any roof.

Minimum Roof Pitch:

15° at a minimum of 100mm headlap
22.5° at a minimum of 75mm headlap


Covering Capacity:

20.9 tiles per m2 at 75mm headlap
23.2 tiles per m2 at 100mm headlap

Maximum Weight Per Sqm 45.4 kg
Quantity Per Pallet 480

Length x Width
Length x Width
330 x 226 mm
Cover Width
Cover Width
191 mm
Hanging Length
Hanging Length
300 mm
Profile Depth
Profile Depth
16 mm
Minimal Batten Gauge
Minimal Batten Gauge
210 mm
Maximum Batten Gauge
Maximum Batten Gauge
255 mm

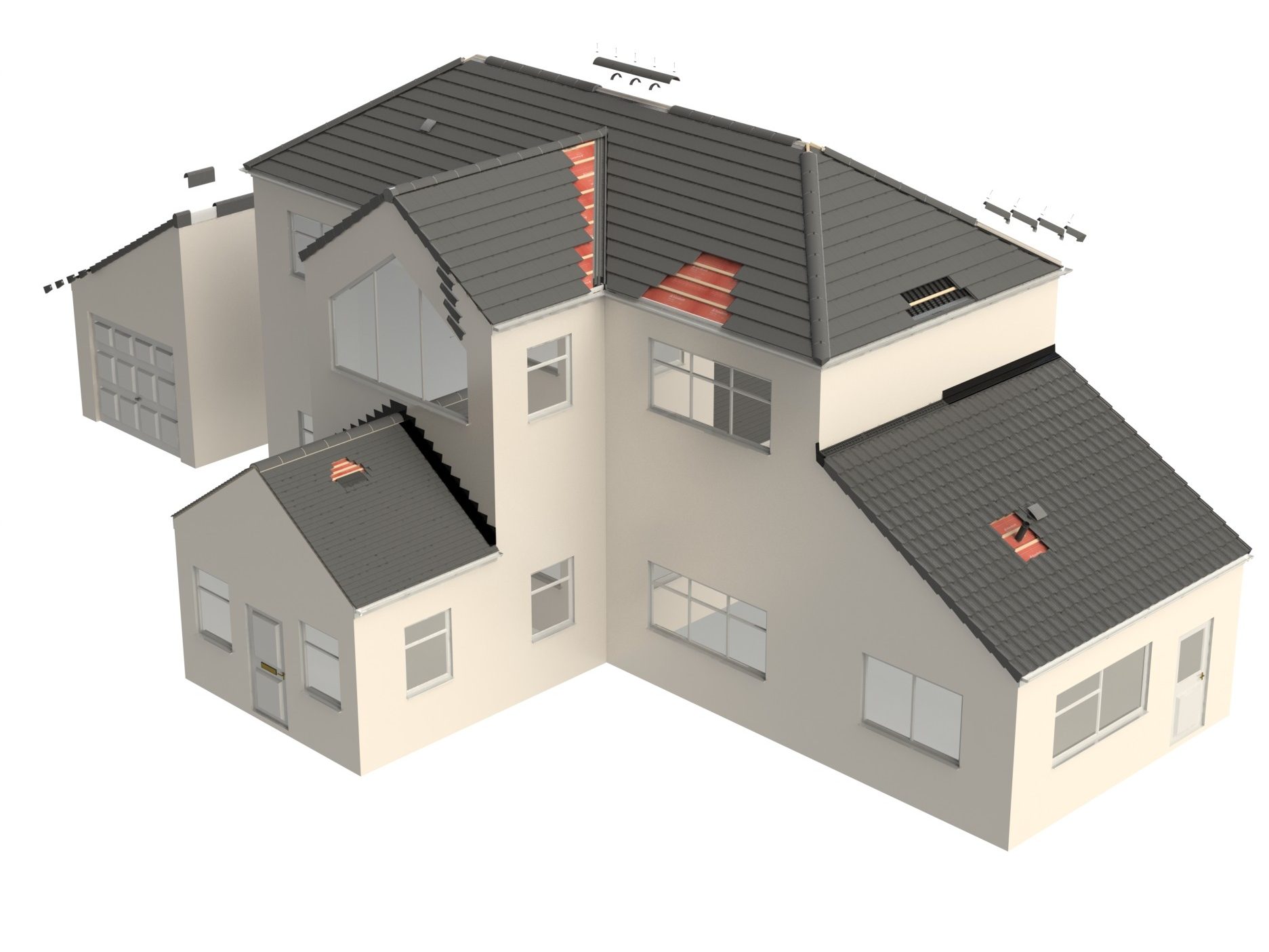

Roof Systems and Accessories

Discover our comprehensive range of roof systems and accessories

As well as the UK's largest range of roof tiles, Wienerberger offers all the systems and accessories you need for your next project, including hip systems, ventilation solutions, underlays, dry ridge and dry verge systems, and more.

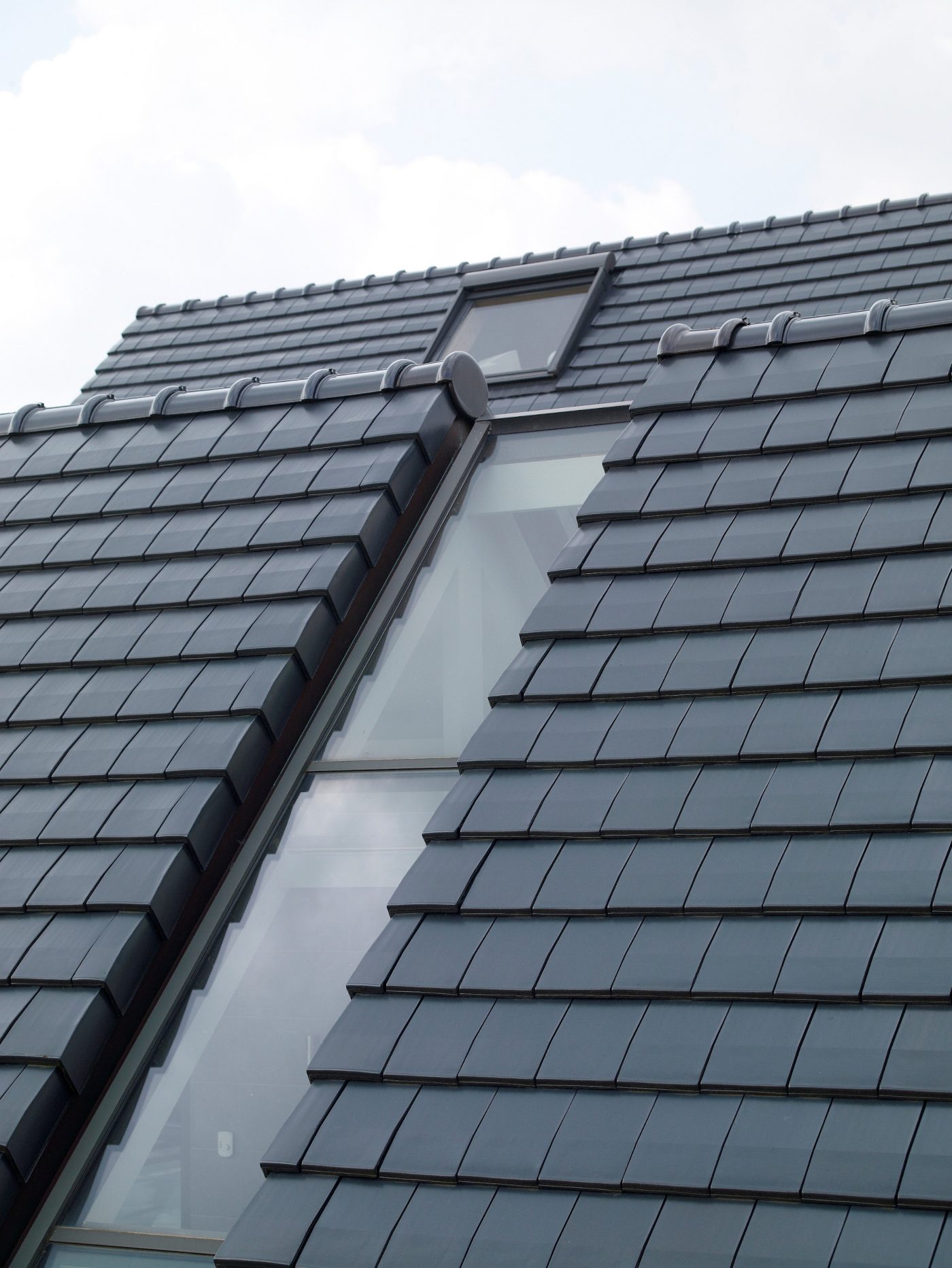

Reference photo new construction single family in De Pinte
