Minimum Roof Pitch:
22.5°
Minimum Headlap: 102mm
Maximum Headlap: 162mm
Covering Capacity: 10.5 tile per m2 at 102mm headlap
Maximum Weight Per Sqm | 46.2 kg |
Quantity Per Pallet | 240 |
Length x Width |
Length x Width
472 x 303 mm
|
---|---|
Cover Width |
Cover Width
262 mm
|
Hanging Length |
Hanging Length
440 mm
|
Profile Depth |
Profile Depth
31 mm
|
Minimal Batten Gauge |
Minimal Batten Gauge
310 mm
|
Maximum Batten Gauge |
Maximum Batten Gauge
370 mm
|

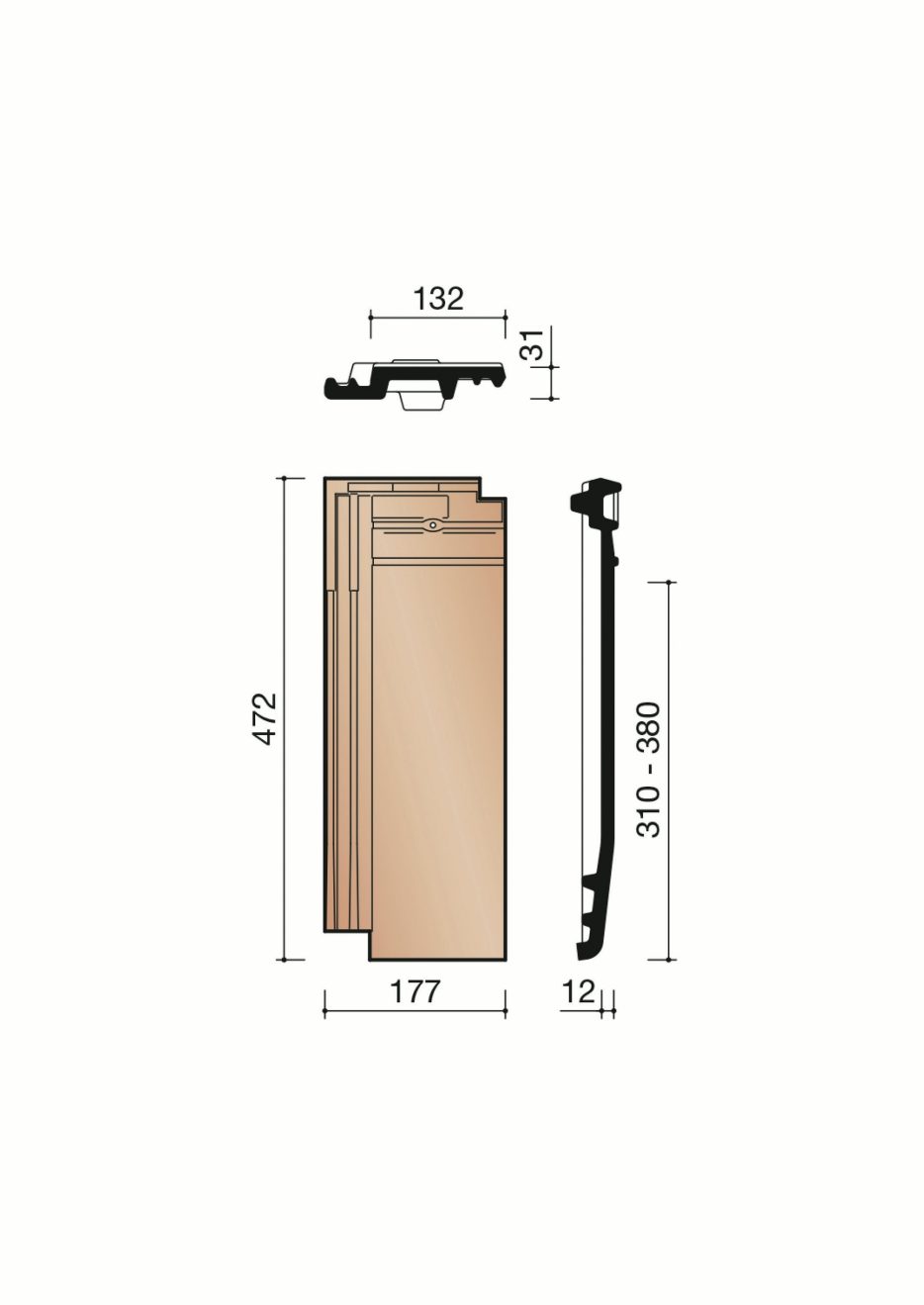

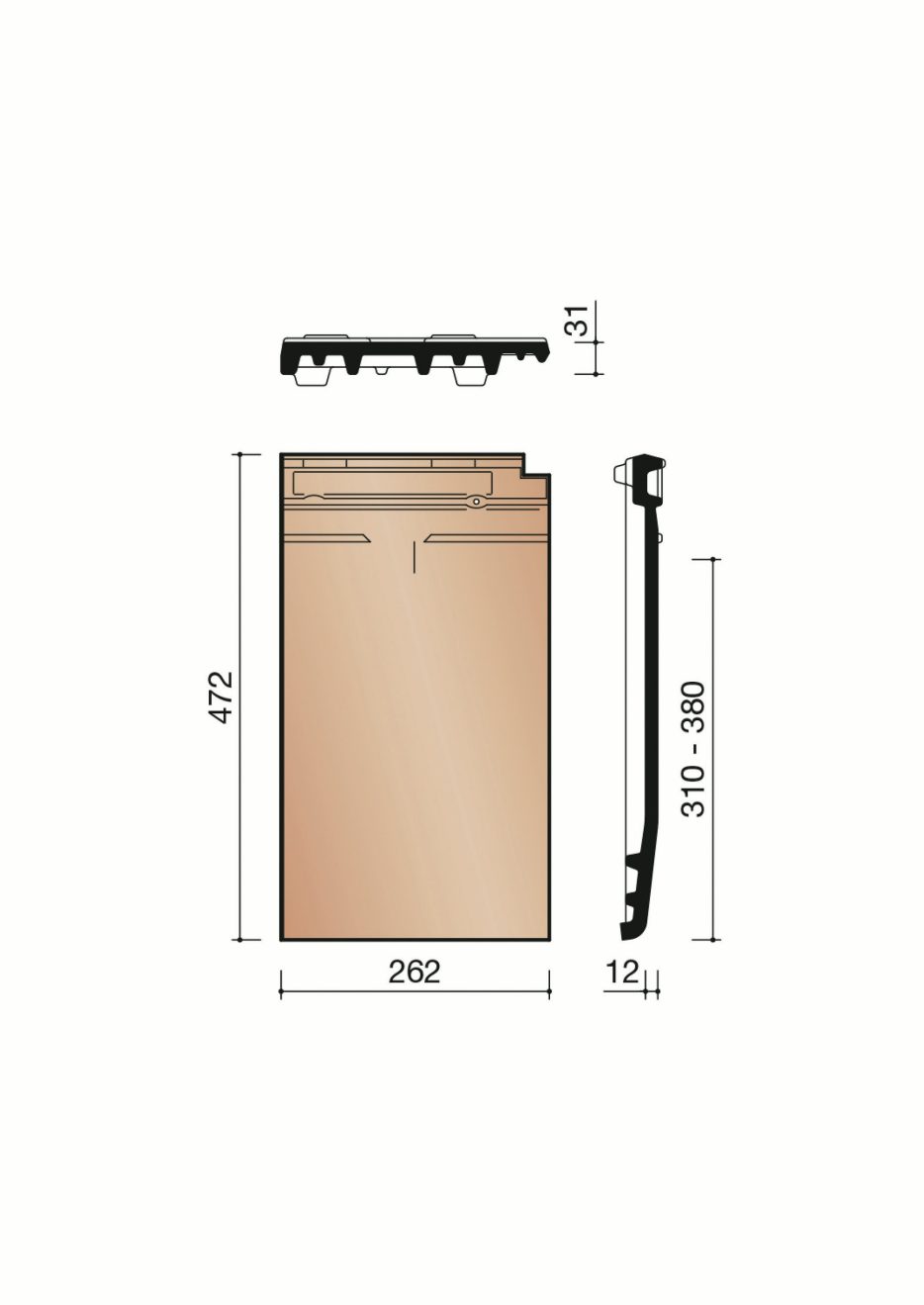

262 W - 472

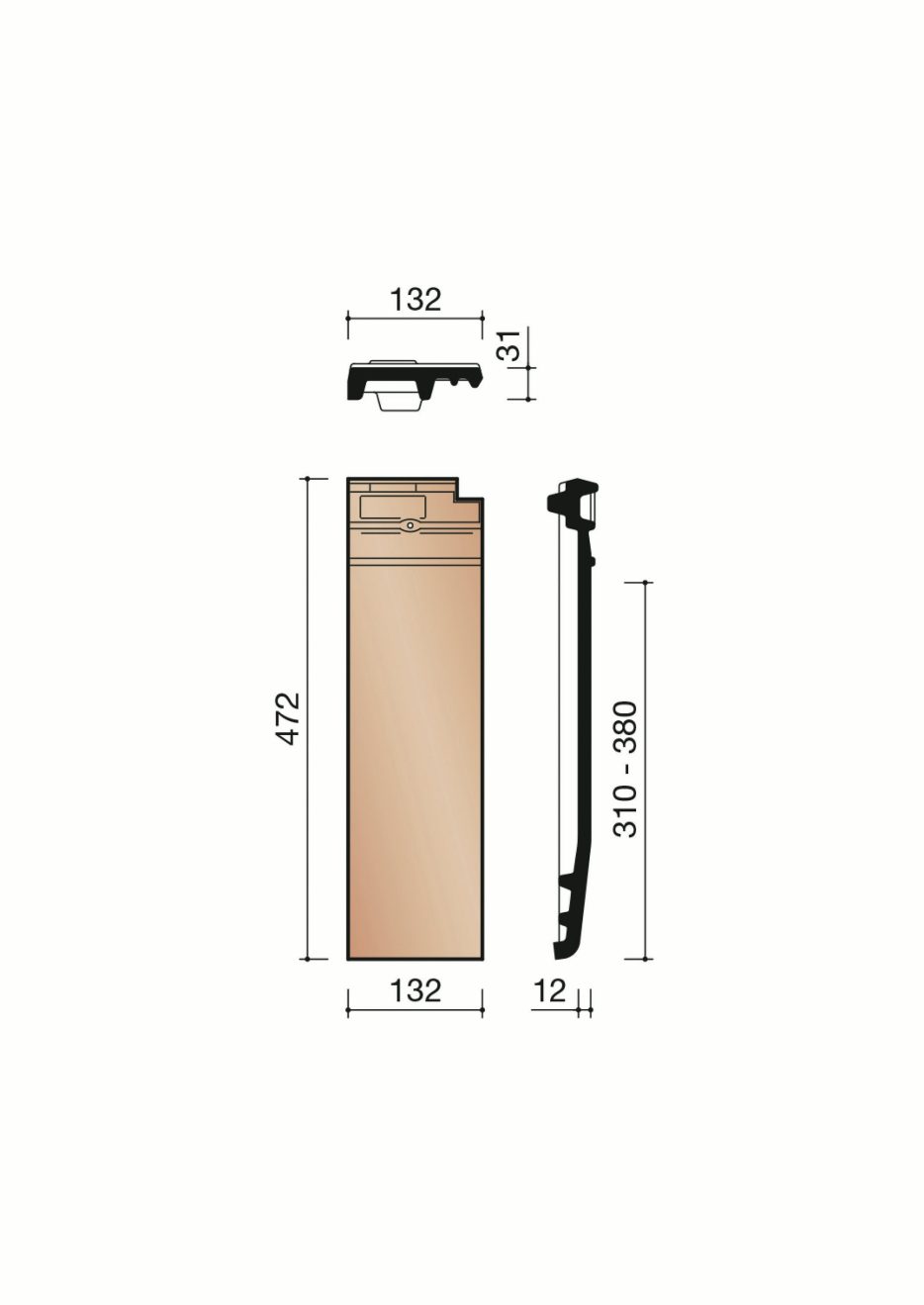

132 W - 472
177 W - 472
Our Multi Angle Roll Hip pack provides a dry fix solution to your hip when using the Multi Angle ridge tile. With adhesive based roll and profile matching joints, the system provides a neat finish to the hip and can be installed alongside most Sandtoft roof tiles.
0 W - 0
Our Multi Angle Profile Mono Ridge pack provides a premium dry fix solution to your mono ridge when using the Multi Angle Mono ridge tile. With 1 metre rigid ventilation strips and profile matching joints, the system provides a neat finish to the mono ridge that closest resembles a traditional mortar bedded installation and is compatible with most Sandtoft roof tiles. For profiled tiles, fillers are sold separately.
0 W - 0
