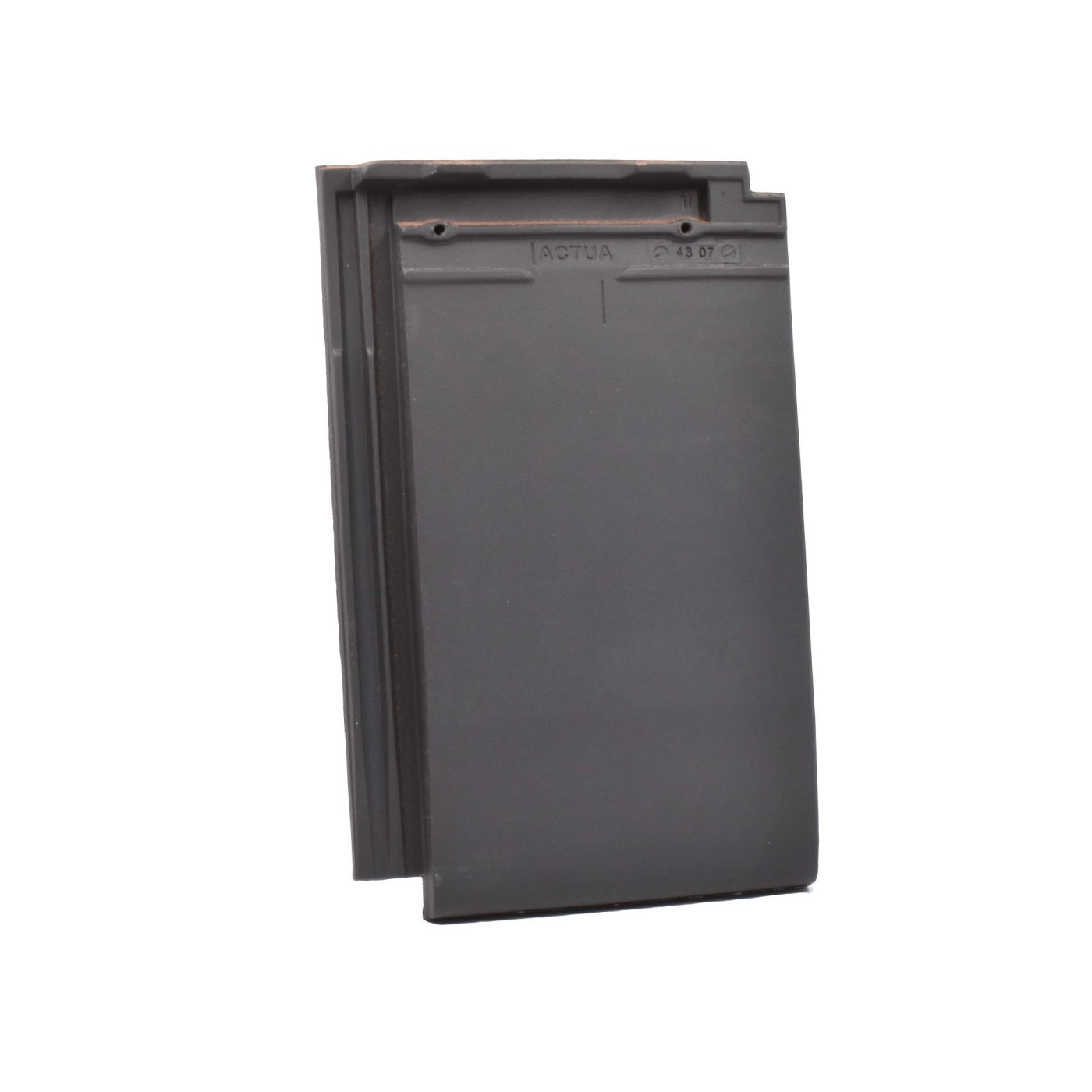

Actua Slate Engobe

A contemporary and innovative flat interlocking clay roof tile.

Minimum Roof Pitch:

22.5°

Minimum Headlap: 102mm
Maximum Headlap: 162mm

Covering Capacity: 10.5 tile per m2 at 102mm headlap

Maximum Weight Per Sqm 46.2 kg
Quantity Per Pallet 240

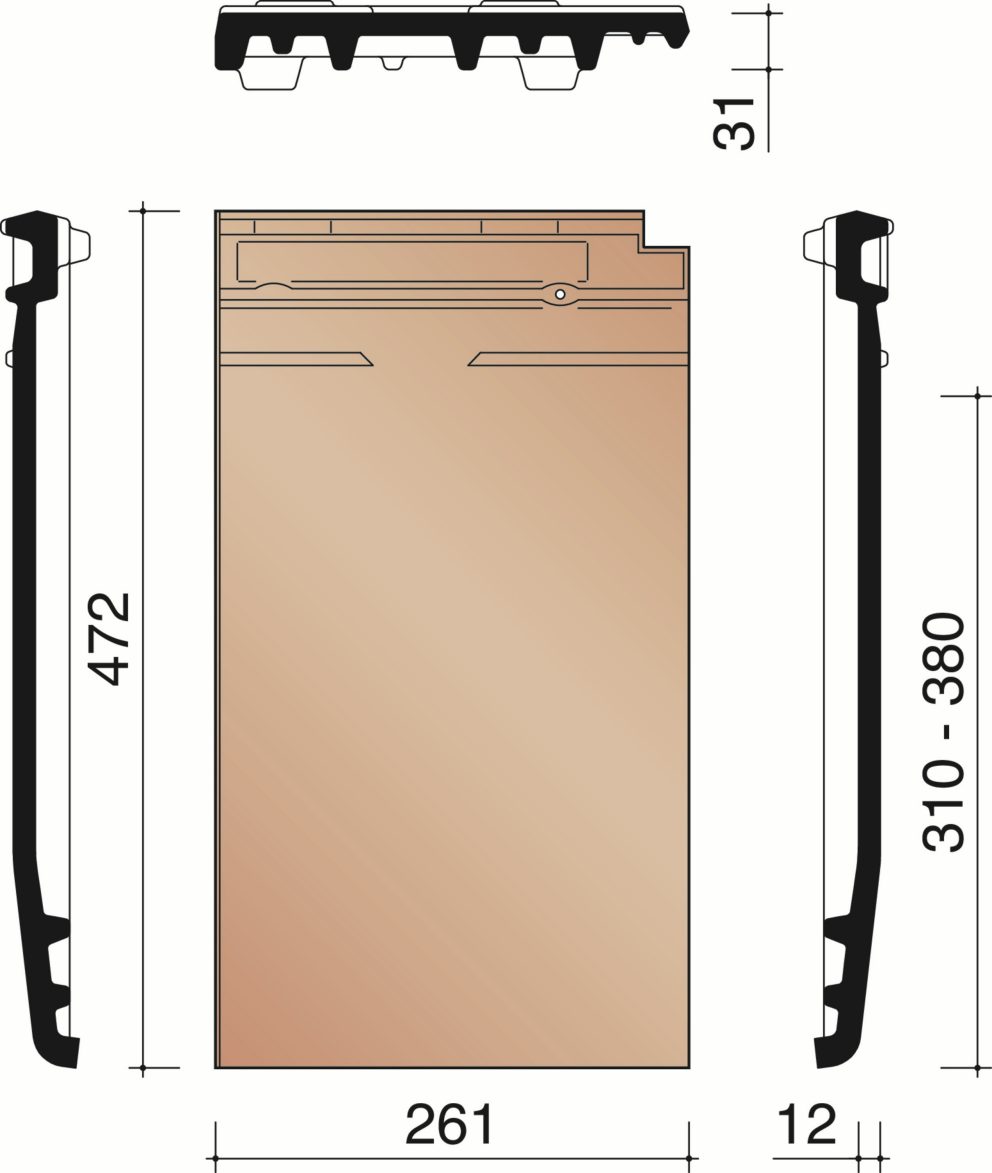

Length x Width
Length x Width
472 x 303 mm
Cover Width
Cover Width
262 mm
Hanging Length
Hanging Length
440 mm
Profile Depth
Profile Depth
31 mm
Minimal Batten Gauge
Minimal Batten Gauge
310 mm
Maximum Batten Gauge
Maximum Batten Gauge
370 mm

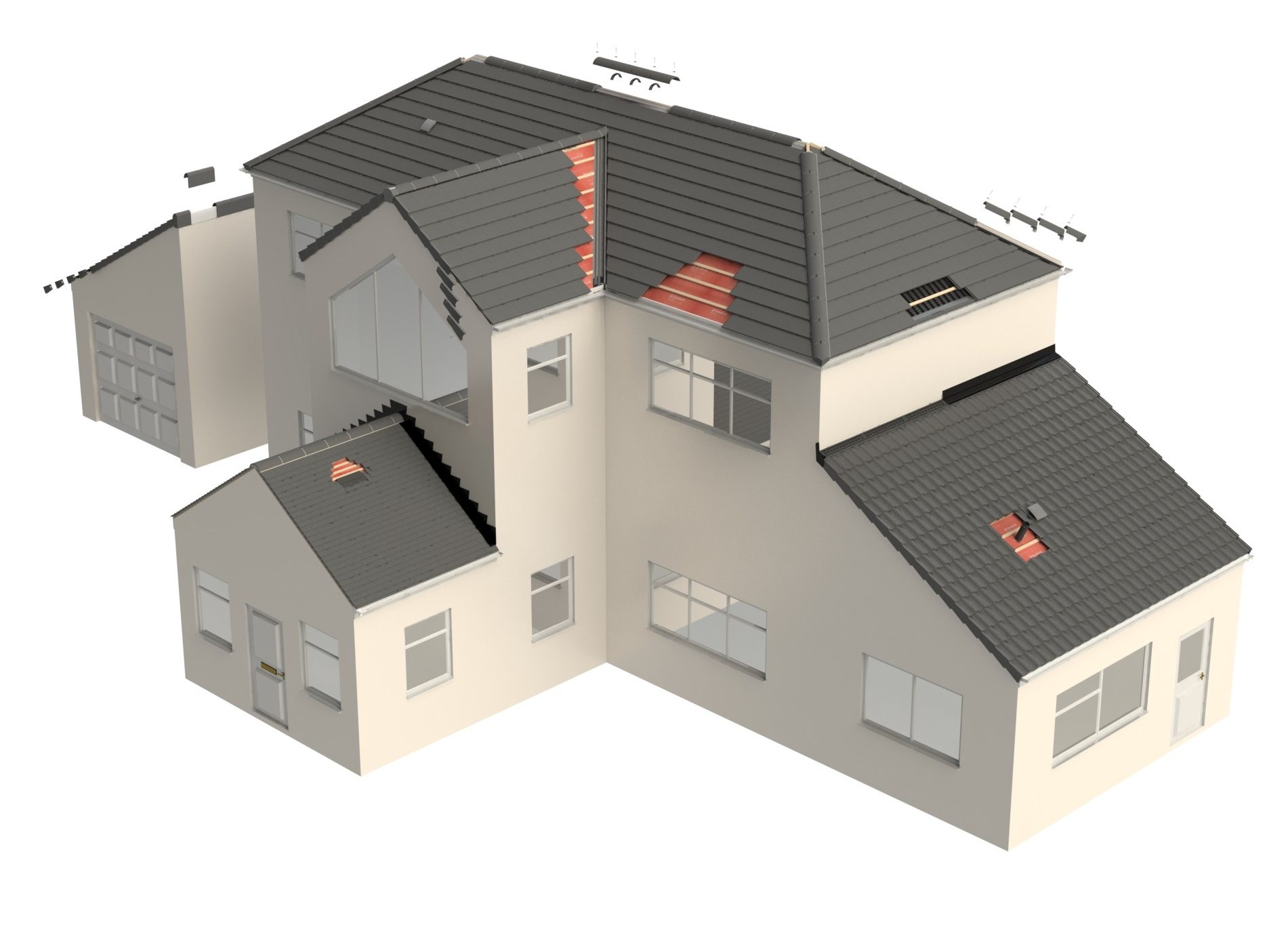

Roof Systems and Accessories

Discover our comprehensive range of roof systems and accessories

As well as the UK's largest range of roof tiles, Wienerberger offers all the systems and accessories you need for your next project, including hip systems, ventilation solutions, underlays, dry ridge and dry verge systems, and more.

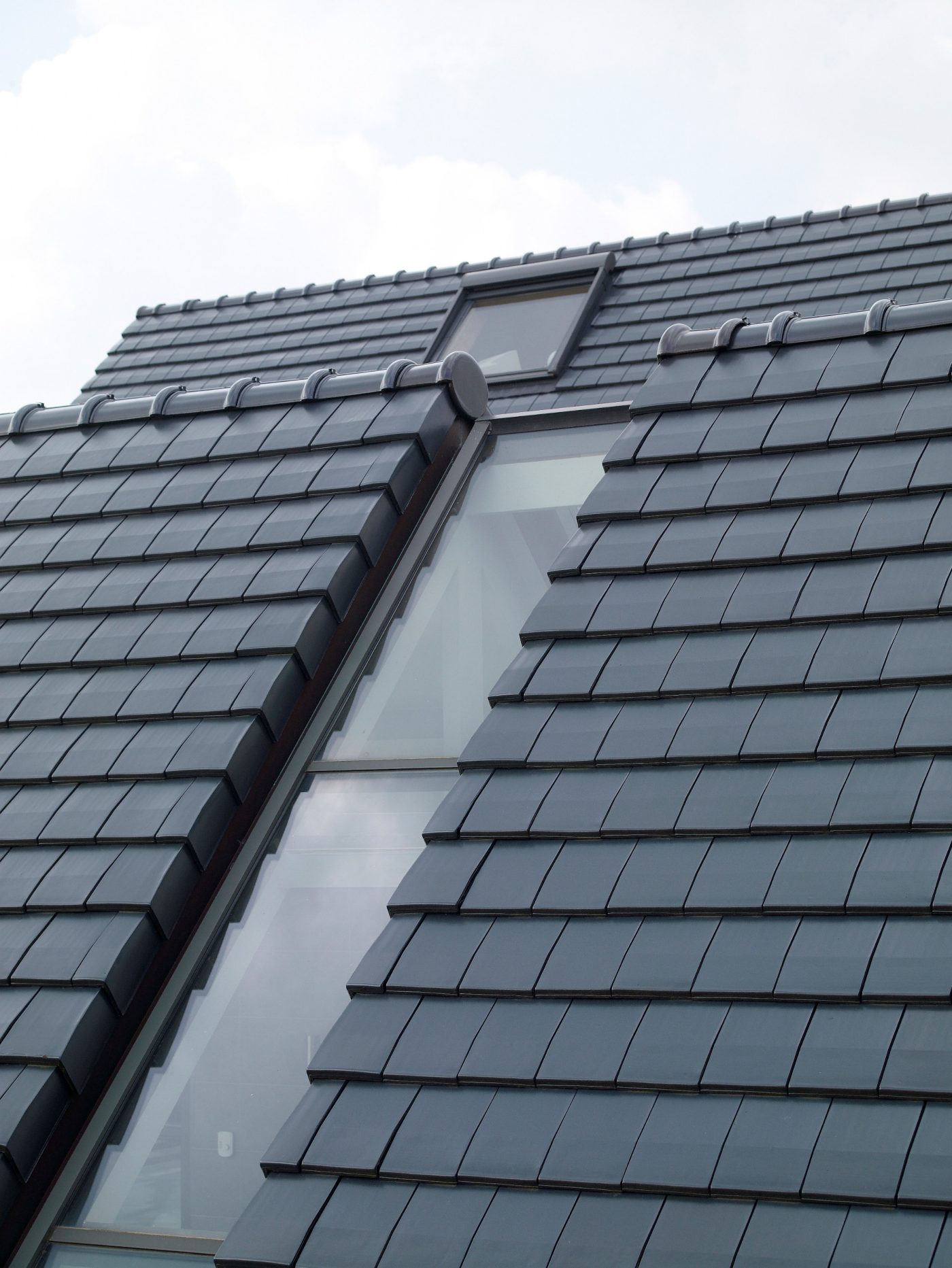

Reference photo new construction single family in De Pinte
