Bridgwater Somerset

The Sandtoft Bridgwater has been designed to satisfy the need for a traditional tapered clay double roman tile, found in the South West of England.

Minimum Roof Pitch:

30°

Headlap (Fixed):

75mm

Covering Capacity:

9.5 tiles per m2

Maximum Weight Per Sqm 43.7 kg
Quantity Per Pallet 186

Length x Width
Length x Width
420 x 340 mm
Cover Width
Cover Width
305 mm
Hanging Length
Hanging Length
403 mm
Profile Depth
Profile Depth
42 mm
Minimal Batten Gauge
Minimal Batten Gauge
345 mm
Maximum Batten Gauge
Maximum Batten Gauge
345 mm

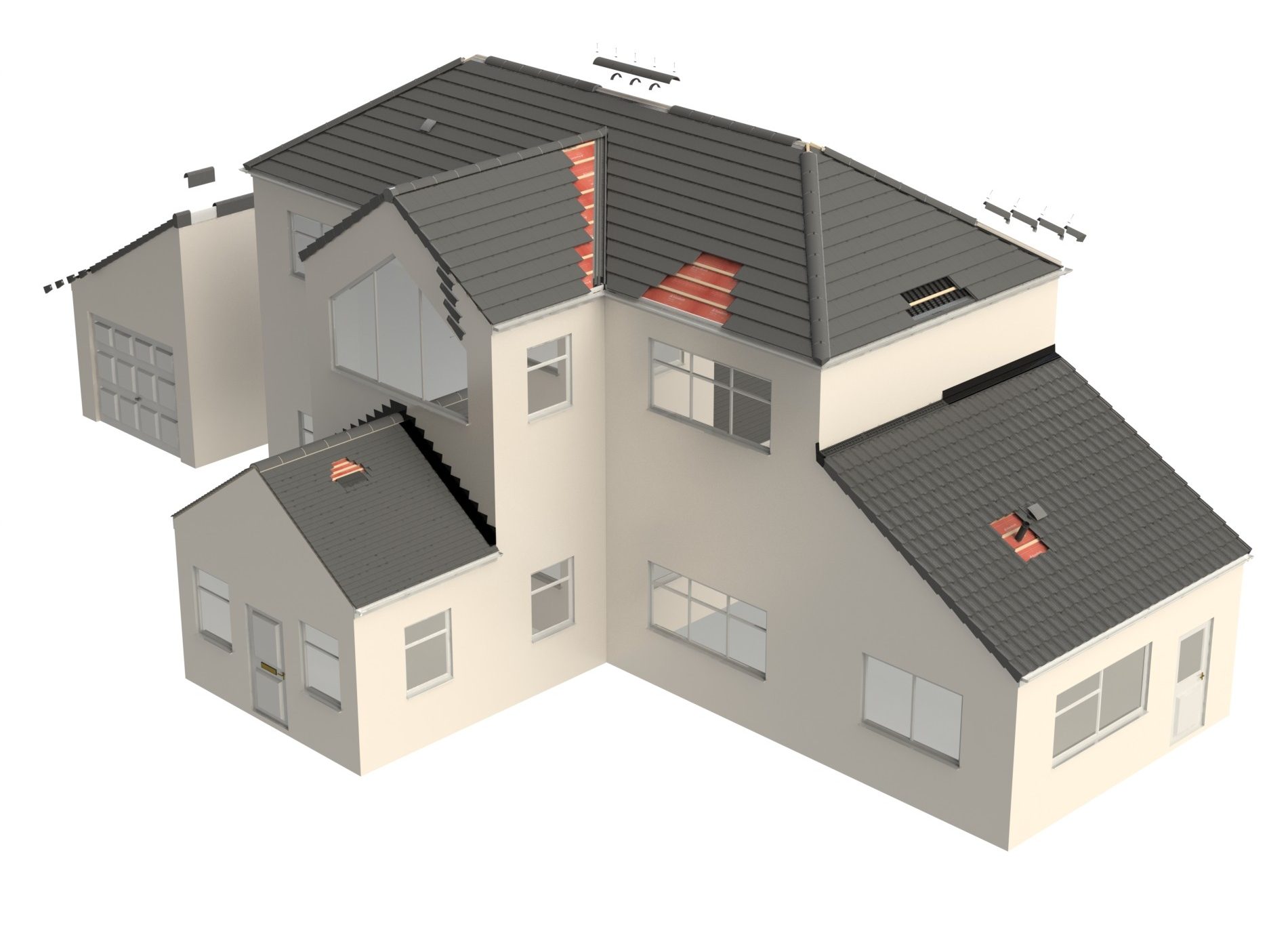

Roof Systems and Accessories

Discover our comprehensive range of roof systems and accessories

As well as the UK's largest range of roof tiles, Wienerberger offers all the systems and accessories you need for your next project, including hip systems, ventilation solutions, underlays, dry ridge and dry verge systems, and more.

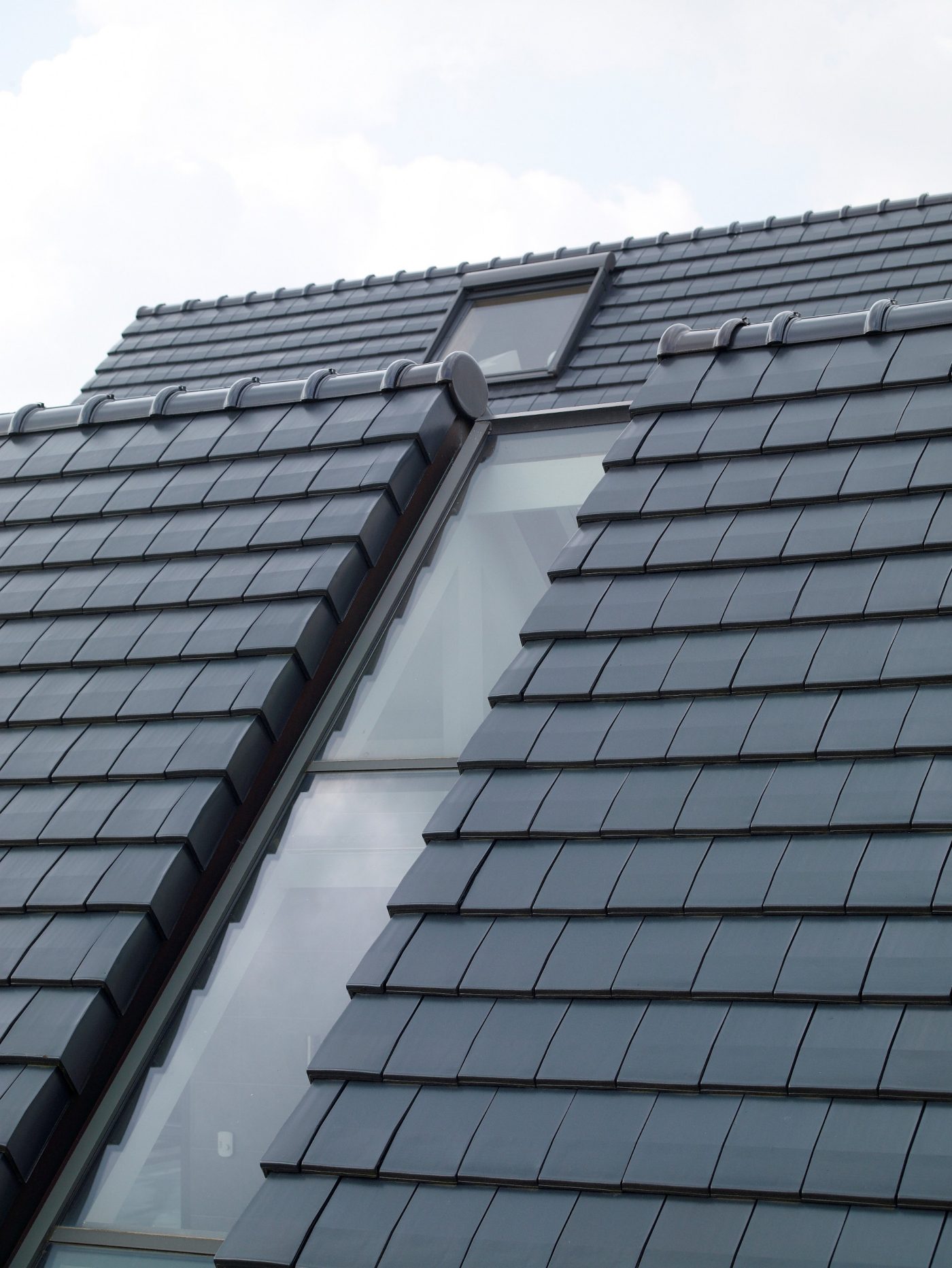

Reference photo new construction single family in De Pinte
