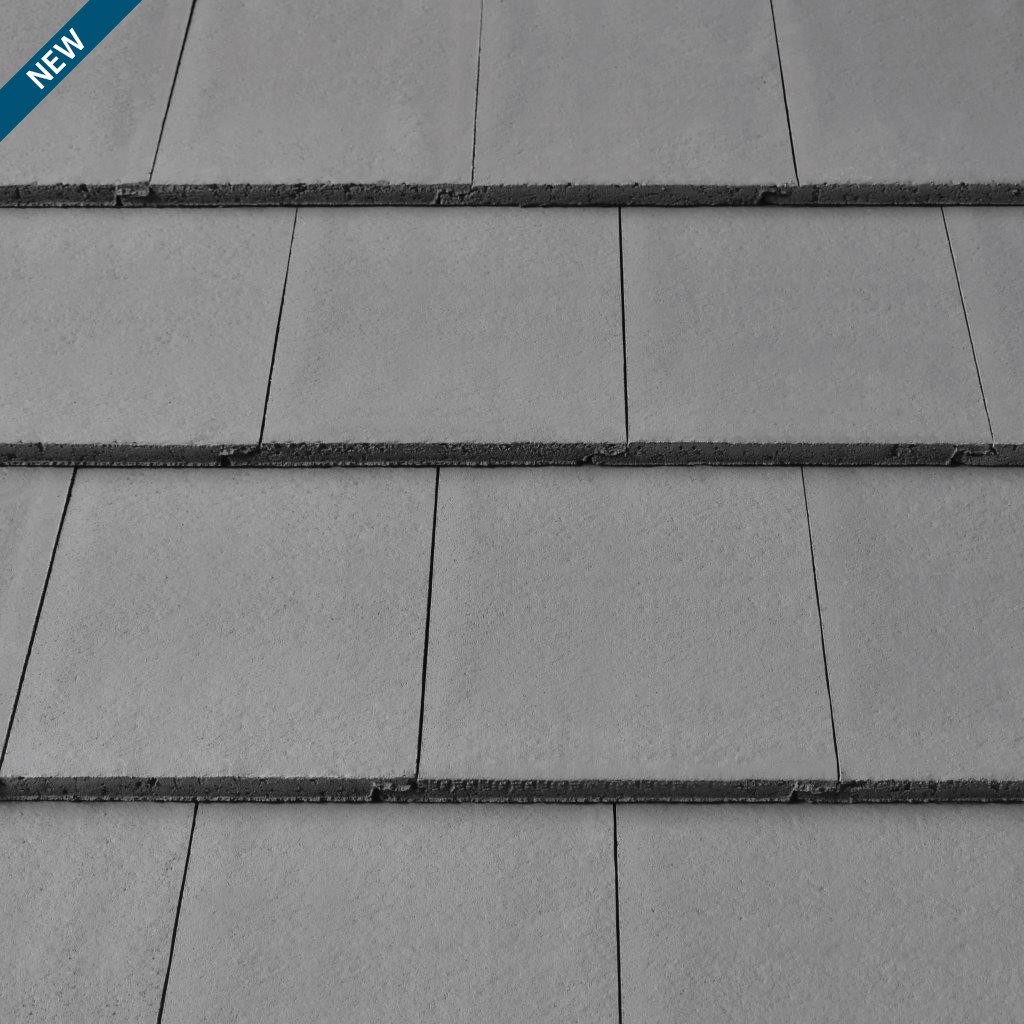

Calderdale Edge Light Grey

The Calderdale Edge. Sometimes it's taking a product you know, and re-engineering it to be quicker, stronger and better value.

Minimum Roof Pitch:
16.5° at a minimum of 100mm headlap
22.5° at a minimum of 75mm headlap

Covering Capacity:
9.4 tiles per m2 at 75mm headlap
10.2 tiles per m2 at 100mm headlap

Maximum Weight Per Sqm 50.5 kg
Quantity Per Pallet 192

Length x Width
Length x Width
420 x 334 mm
Cover Width
Cover Width
307 mm
Hanging Length
Hanging Length
405 mm
Profile Depth
Profile Depth
28 mm
Minimal Batten Gauge
Minimal Batten Gauge
300 mm
Maximum Batten Gauge
Maximum Batten Gauge
345 mm

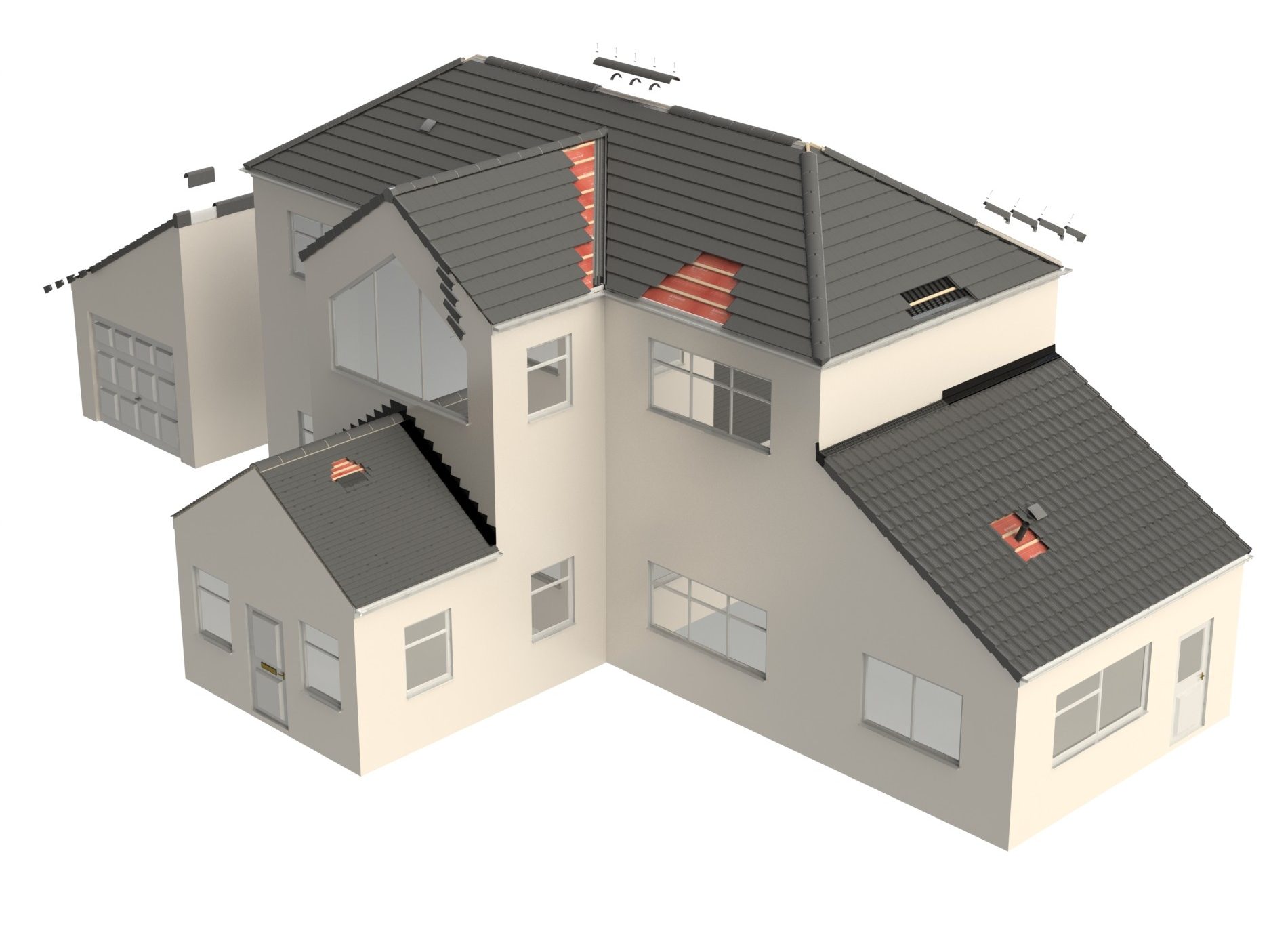

Roof Systems and Accessories

Discover our comprehensive range of roof systems and accessories

As well as the UK's largest range of roof tiles, Wienerberger offers all the systems and accessories you need for your next project, including hip systems, ventilation solutions, underlays, dry ridge and dry verge systems, and more.

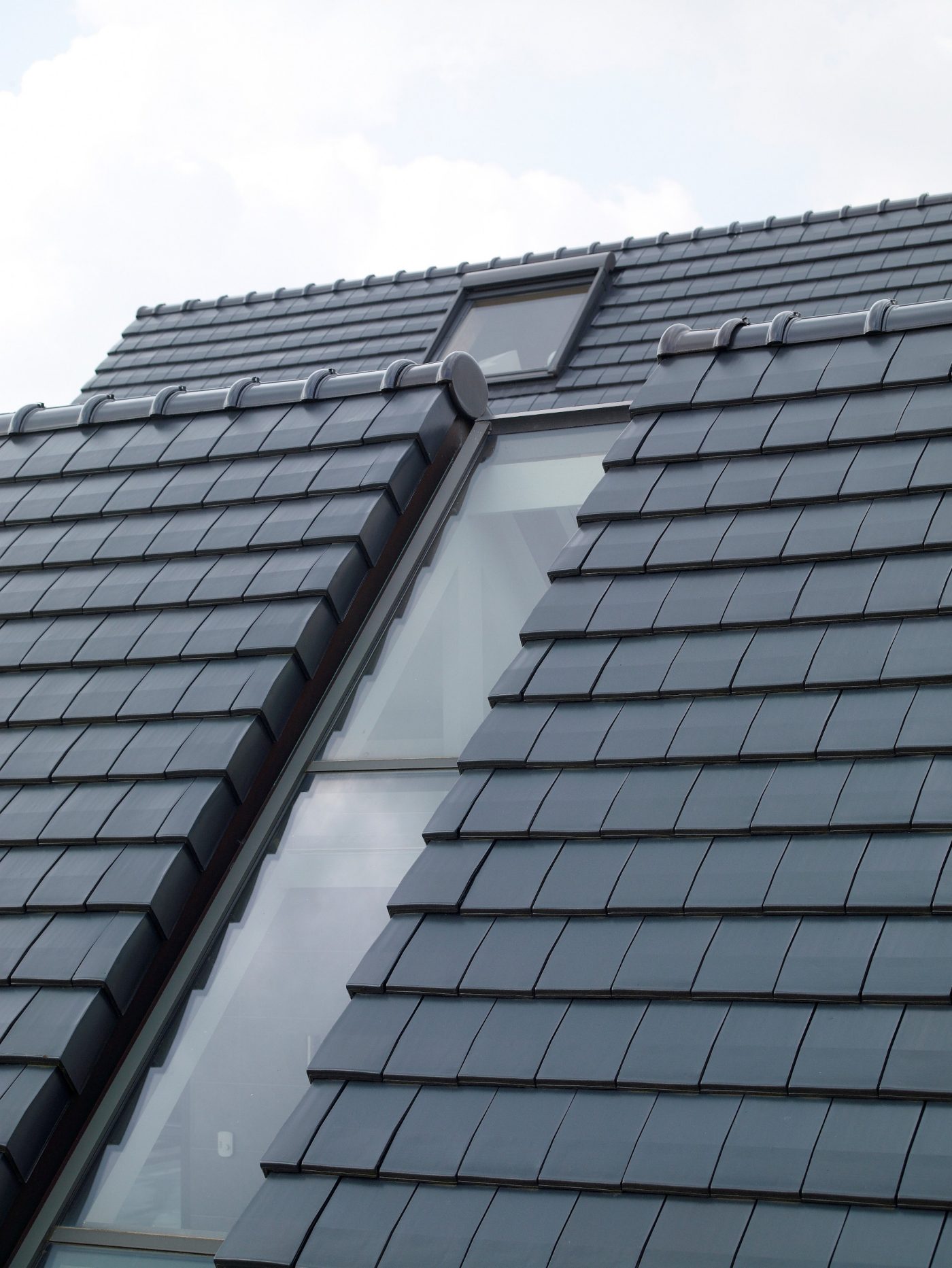

Reference photo new construction single family in De Pinte
