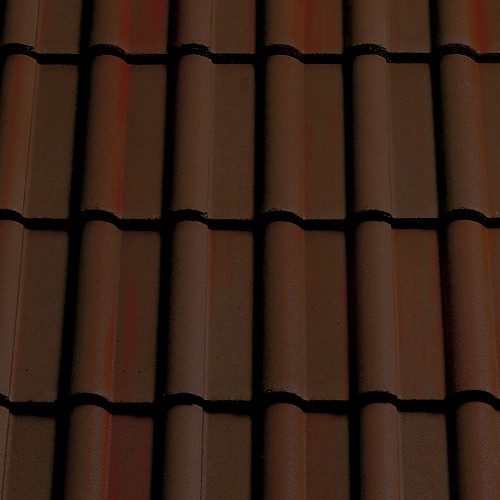

Double Roman Dark Heather

A long established Roman design popular in most regions, ideal for both new build and refurbishment.

Minimum Roof Pitch:

17.5° at a minimum of 100mm headlap
22.5° at a minimum of 75mm headlap
30° for all sandfaced colours regardless of headlap

Covering Capacity:

9.7 tiles per m2 at 75mm headlap
10.4 tiles per m2 at 100mm headlap

Maximum Weight Per Sqm 43.5 kg
Quantity Per Pallet 216

Length x Width
Length x Width
420 x 334 mm
Cover Width
Cover Width
300 mm
Hanging Length
Hanging Length
398 mm
Profile Depth
Profile Depth
50 mm
Minimal Batten Gauge
Minimal Batten Gauge
300 mm
Maximum Batten Gauge
Maximum Batten Gauge
345 mm

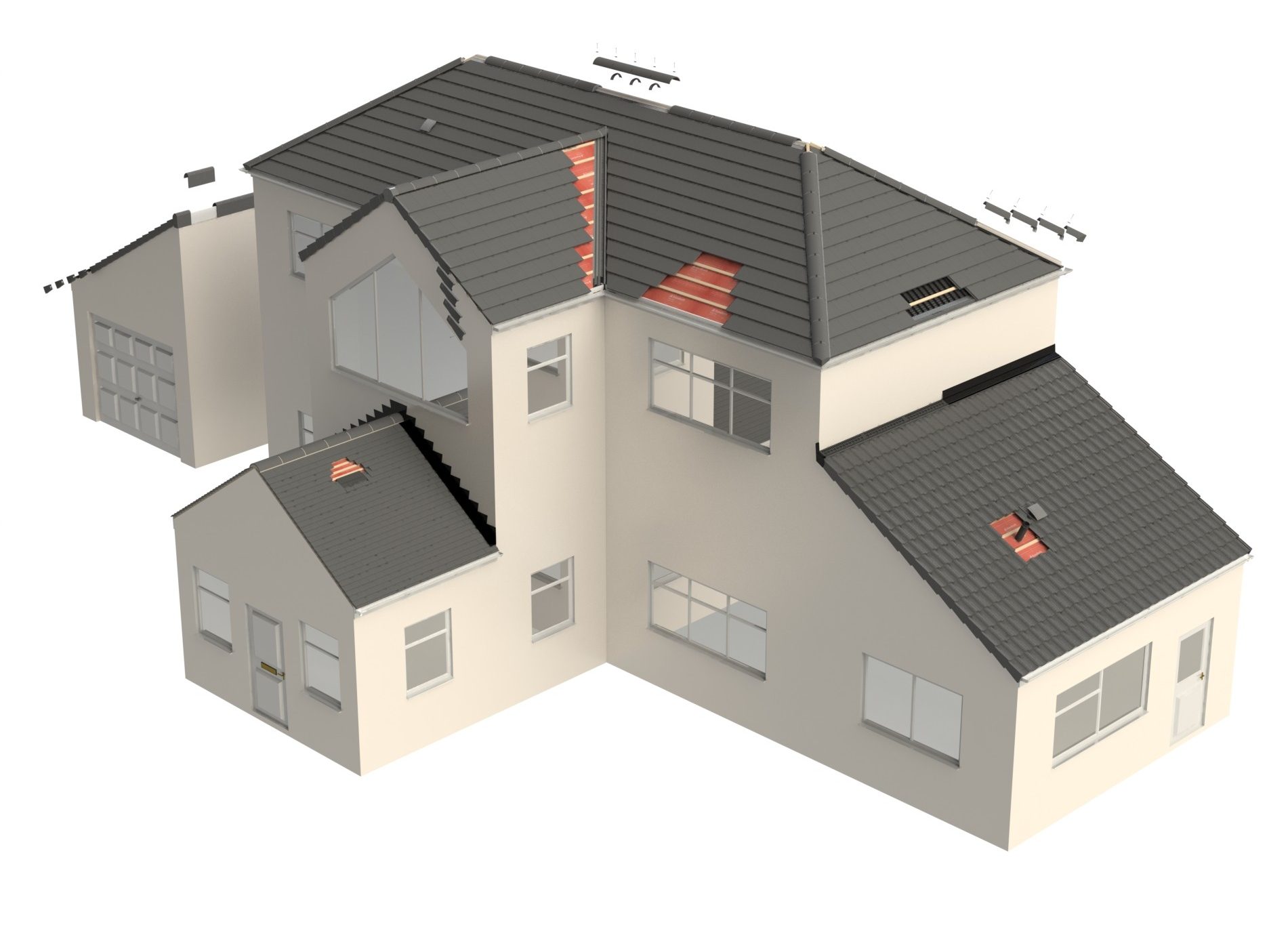

Roof Systems and Accessories

Discover our comprehensive range of roof systems and accessories

As well as the UK's largest range of roof tiles, Wienerberger offers all the systems and accessories you need for your next project, including hip systems, ventilation solutions, underlays, dry ridge and dry verge systems, and more.

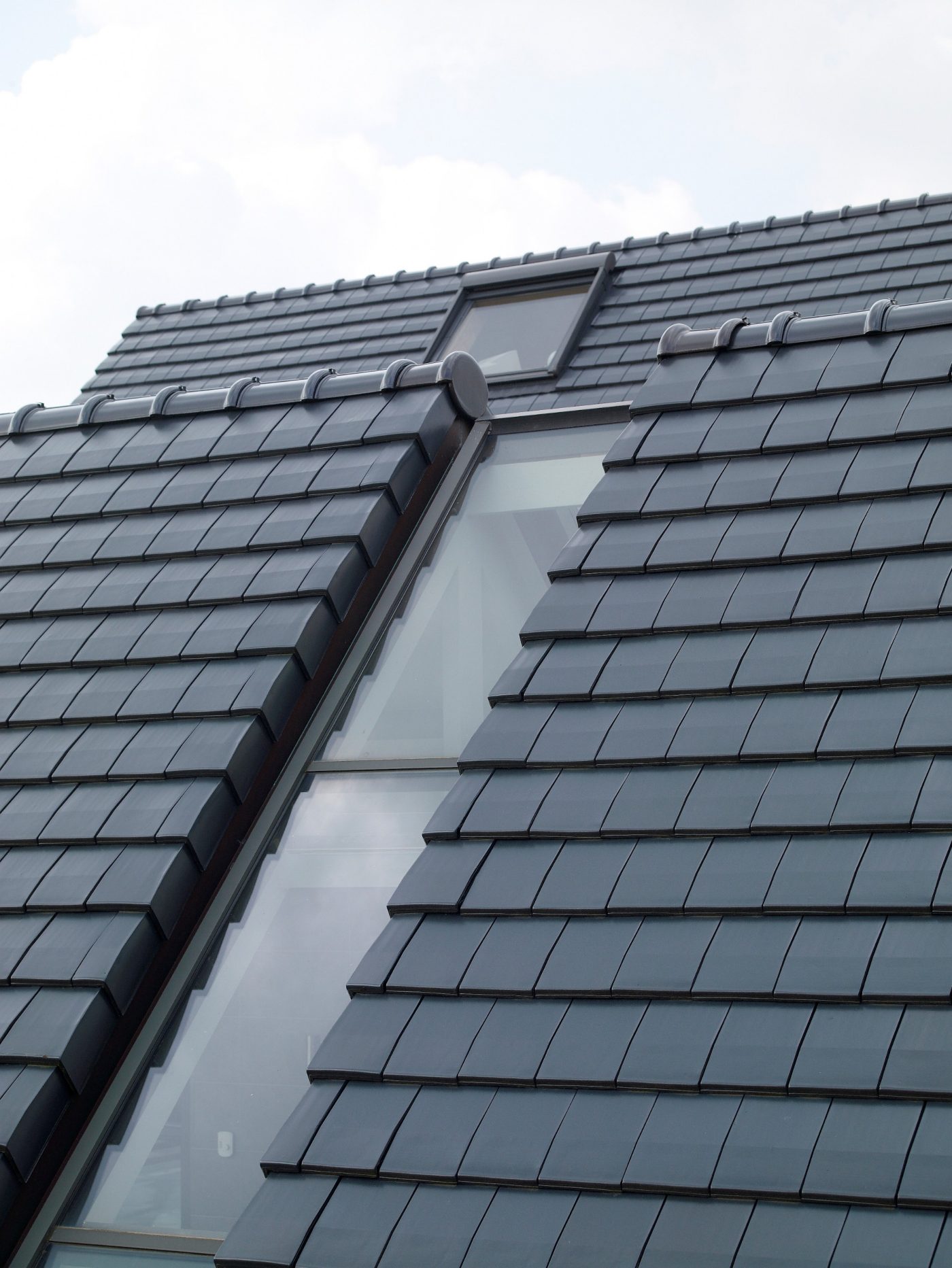

Reference photo new construction single family in De Pinte
