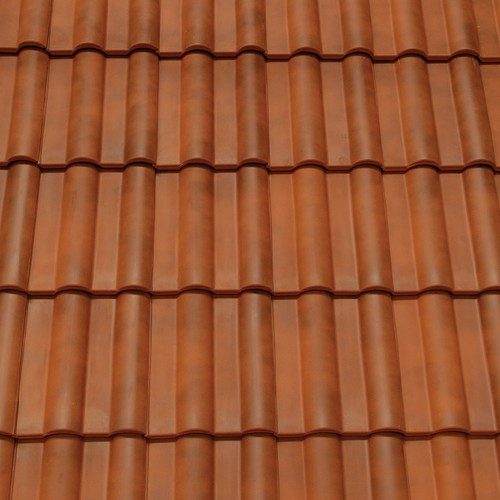

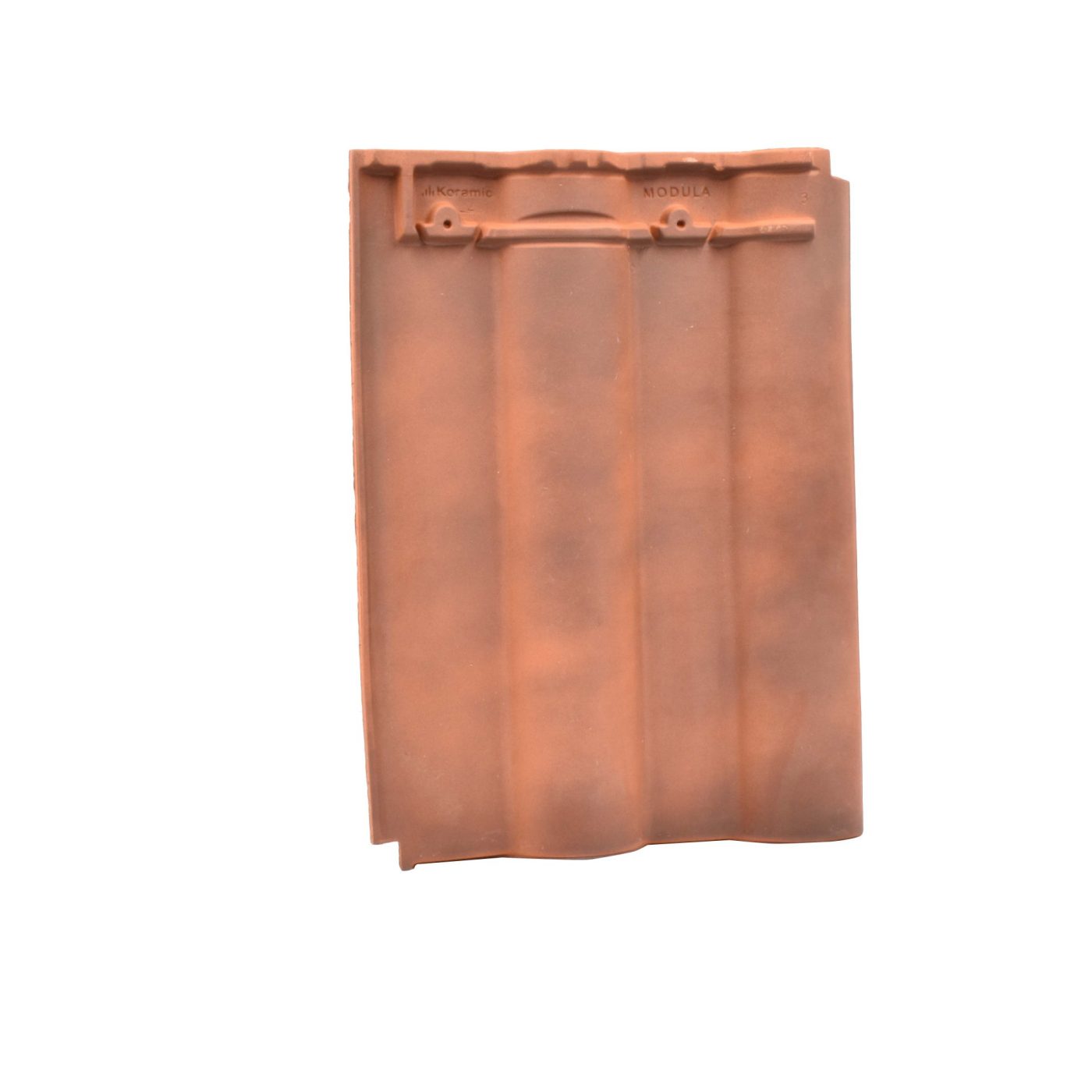

Modula Chilton Red

The Modula clay double roman is a New Generation clay tile that brings the ease and speed of installation of a concrete tile, while offering the aesthetics that only natural clay can bring.

Minimum Roof Pitch:

17.5° at a minimum of 100mm headlap
22.5° at a minimum of 75mm headlap


Covering Capacity:

9.0 tiles per m2 at 75mm headlap
9.7 tiles per m2 at 100mm headlap

Maximum Weight Per Sqm 40.7 kg
Quantity Per Pallet 240

Length x Width
Length x Width
443 x 328 mm
Cover Width
Cover Width
300 mm
Hanging Length
Hanging Length
416 mm
Profile Depth
Profile Depth
54 mm
Minimal Batten Gauge
Minimal Batten Gauge
323 mm
Maximum Batten Gauge
Maximum Batten Gauge
368 mm

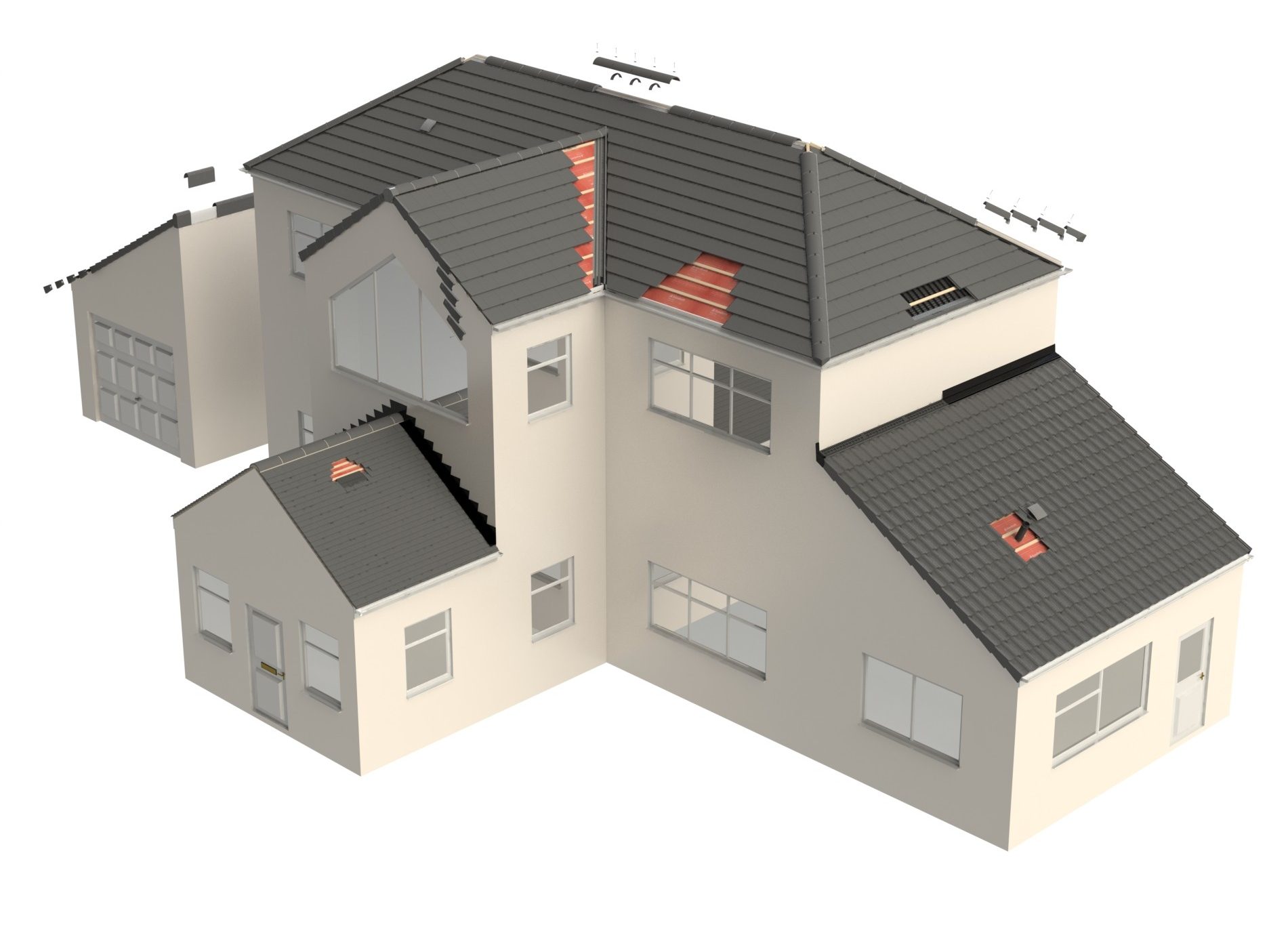

Roof Systems and Accessories

Discover our comprehensive range of roof systems and accessories

As well as the UK's largest range of roof tiles, Wienerberger offers all the systems and accessories you need for your next project, including hip systems, ventilation solutions, underlays, dry ridge and dry verge systems, and more.

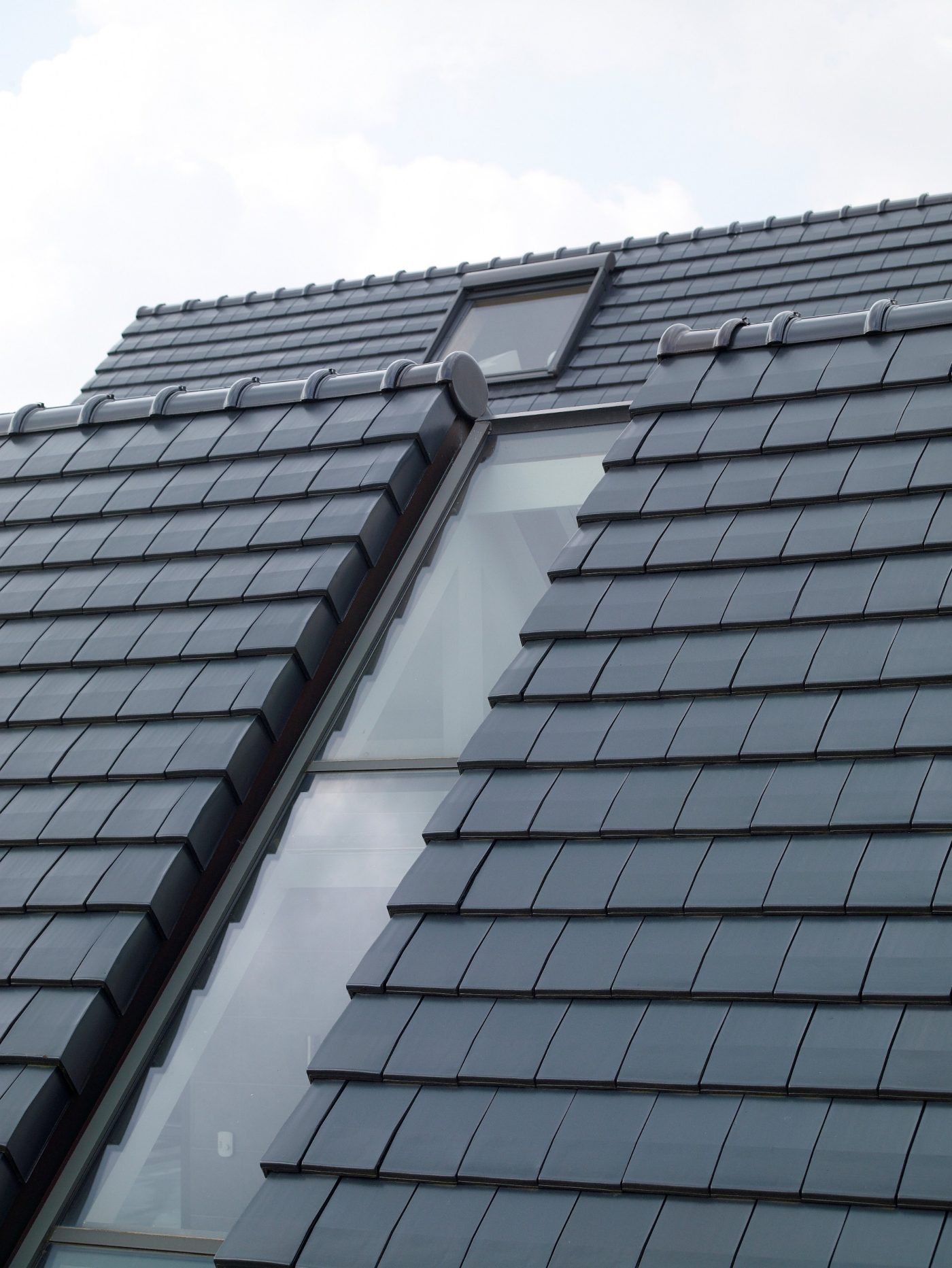

Reference photo new construction single family in De Pinte
