Plain Tile Terracotta Red

This versatile cross-cambered concrete tile is perfect for complex detailing and curved roof applications.

Minimum Roof Pitch (Roof):

35°

Headlap:

65mm

Covering Capacity:

60 tiles per m2

Minimum Roof Pitch (Vertical):

75°

Headlap:

38mm

Covering Capacity:

53 tiles per m2

Maximum Weight Per Sqm 78 kg
Quantity Per Pallet 768

Length x Width
Length x Width
265 x 165 mm
Cover Width
Cover Width
165 mm
Hanging Length
Hanging Length
245 mm
Profile Depth
Profile Depth
13 mm
Minimal Batten Gauge
Minimal Batten Gauge
100 mm
Maximum Batten Gauge
Maximum Batten Gauge
100 mm

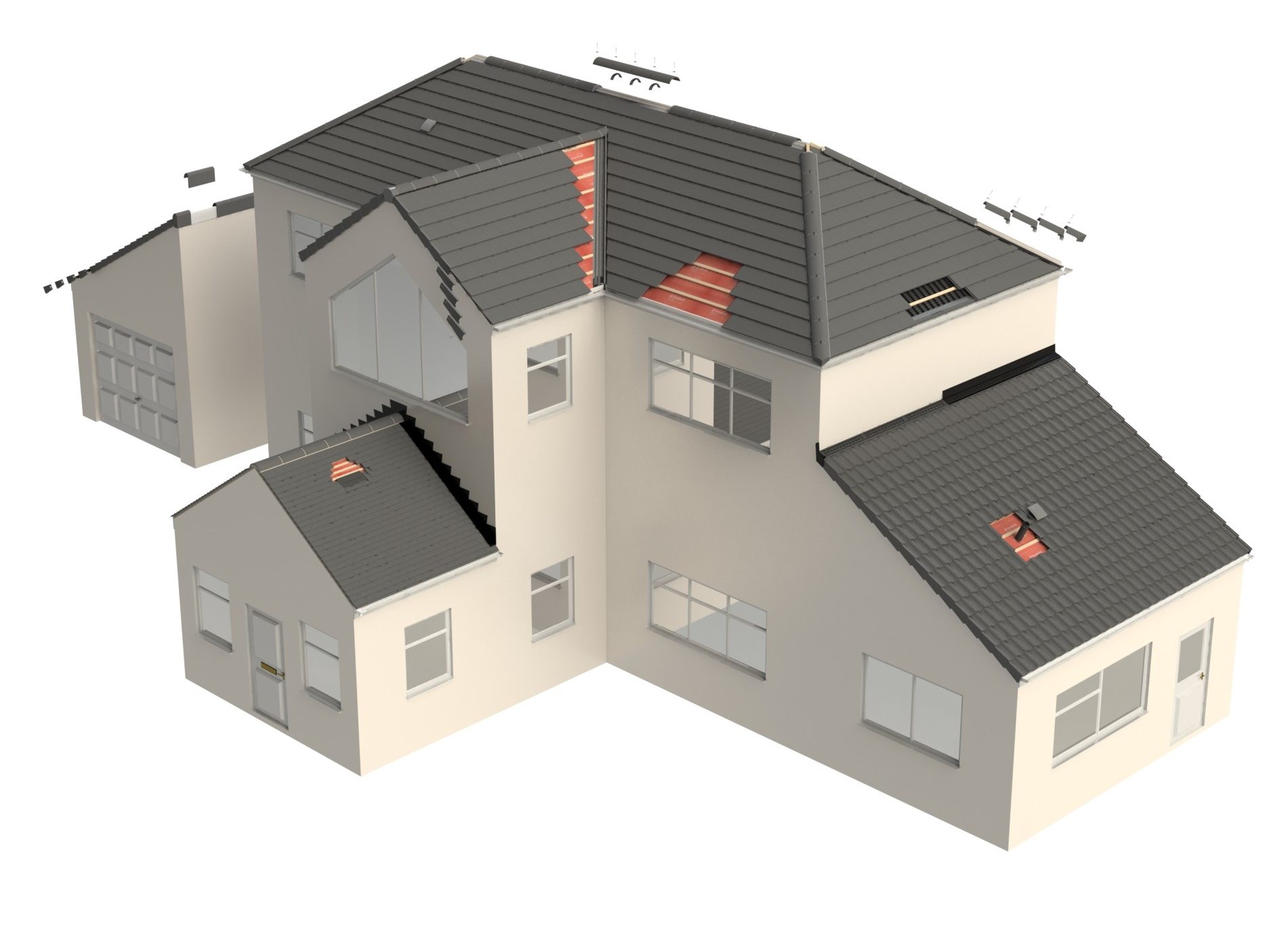

Roof Systems and Accessories

Discover our comprehensive range of roof systems and accessories

As well as the UK's largest range of roof tiles, Wienerberger offers all the systems and accessories you need for your next project, including hip systems, ventilation solutions, underlays, dry ridge and dry verge systems, and more.

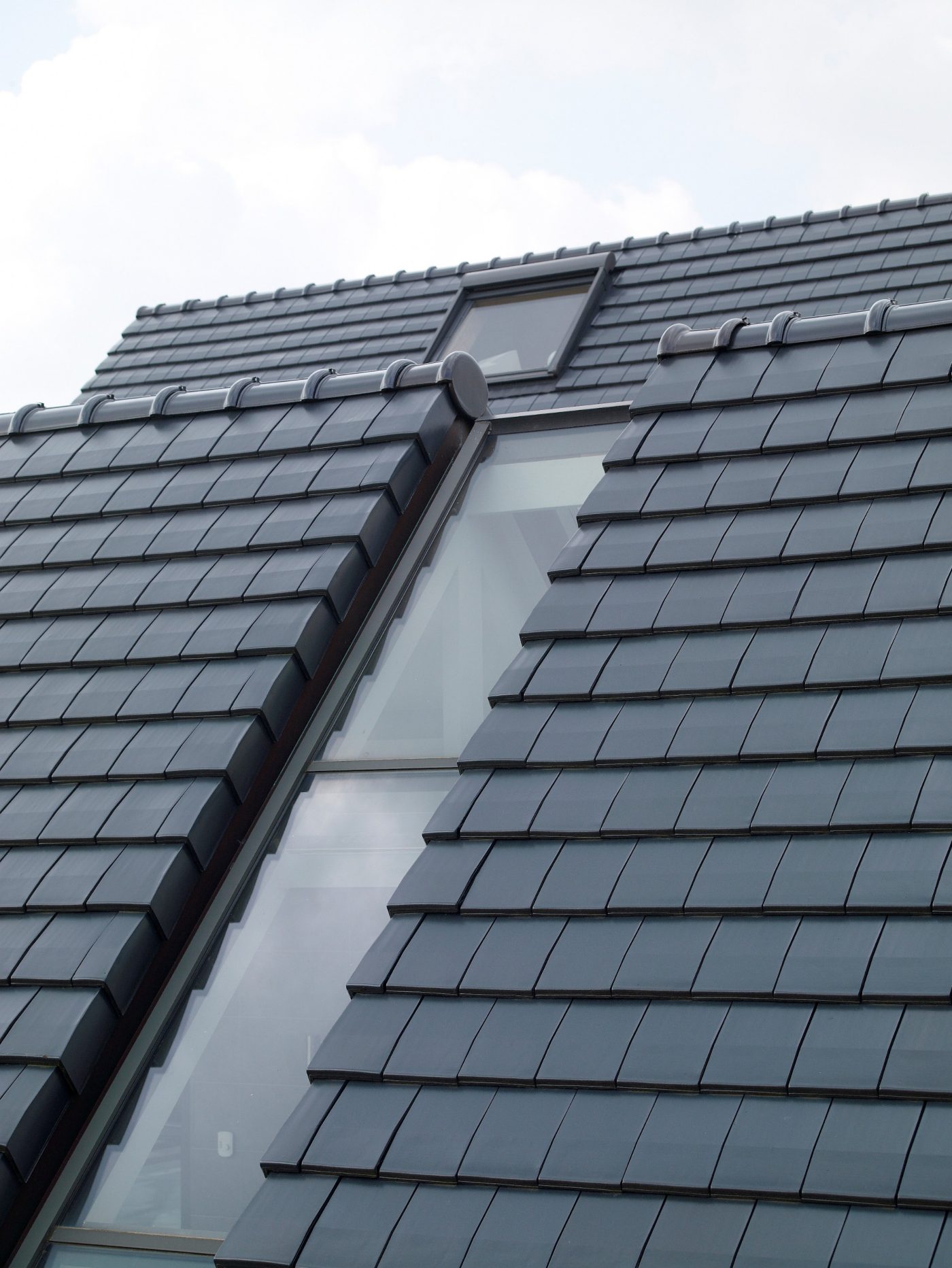

Reference photo new construction single family in De Pinte
