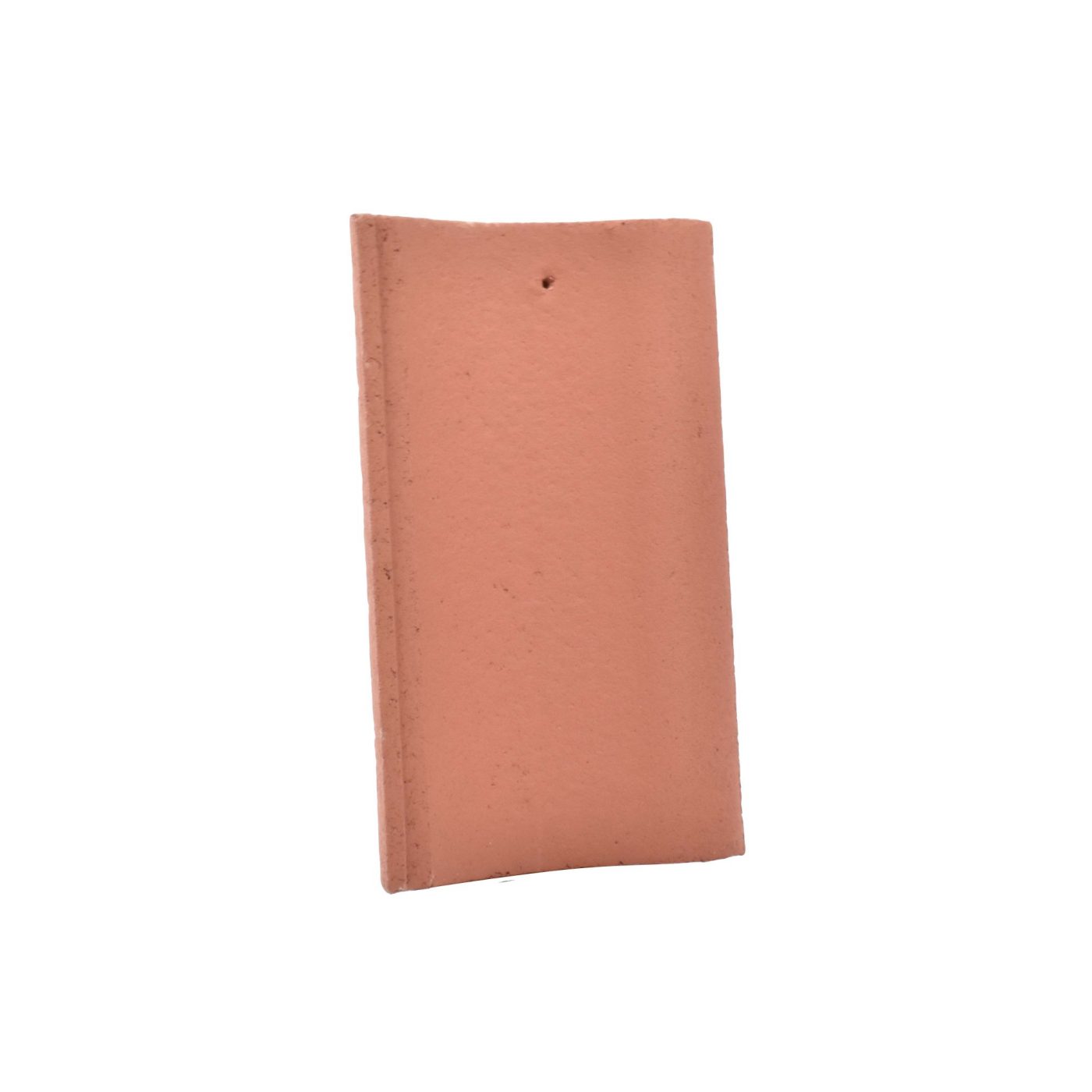

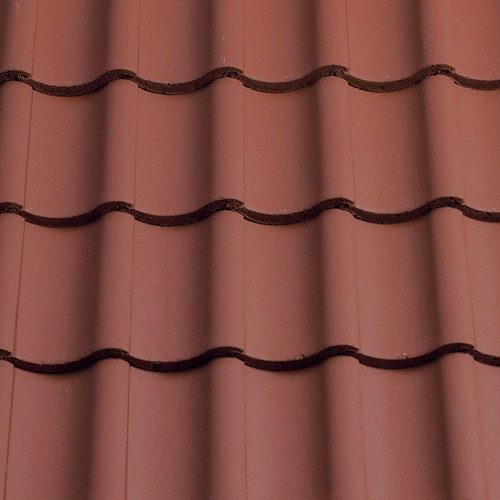

Shire Pantile Terracotta Red

All the proportions of a classic pantile profile available in seven distinctive colours.

Minimum Roof Pitch:

22.5° at a minimum of 75mm headlap (smoothfaced colours only)
30° for all sandfaced colours regardless of headlap

Covering Capacity:

16.4 tiles per m2 at 75mm headlap

Quantity Per Pallet 360

Length x Width
Length x Width
380 x 230 mm
Cover Width
Cover Width
200 mm
Hanging Length
Hanging Length
360 mm
Profile Depth
Profile Depth
70 mm
Minimal Batten Gauge
Minimal Batten Gauge
260 mm
Maximum Batten Gauge
Maximum Batten Gauge
305 mm

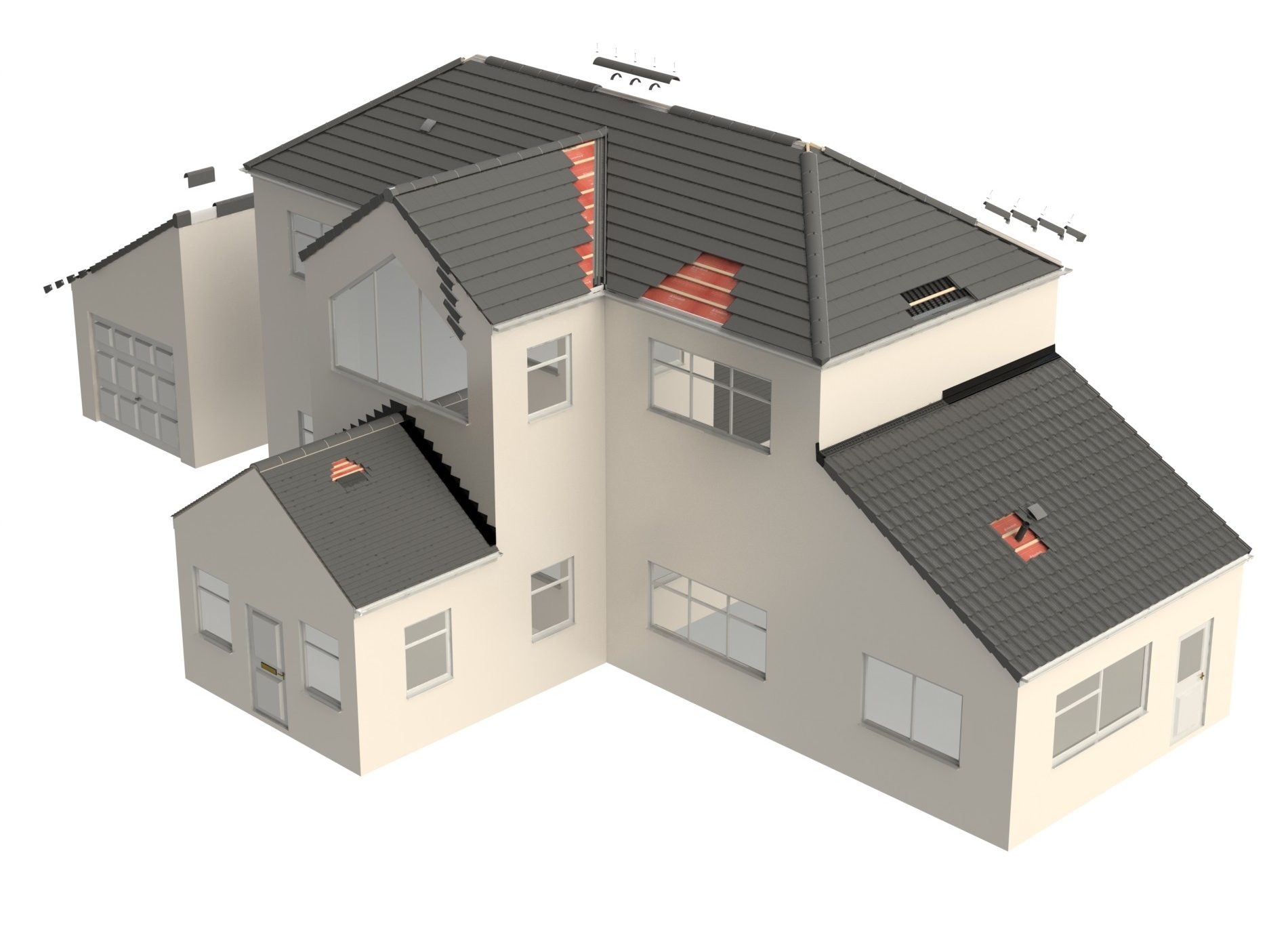

Roof Systems and Accessories

Discover our comprehensive range of roof systems and accessories

As well as the UK's largest range of roof tiles, Wienerberger offers all the systems and accessories you need for your next project, including hip systems, ventilation solutions, underlays, dry ridge and dry verge systems, and more.

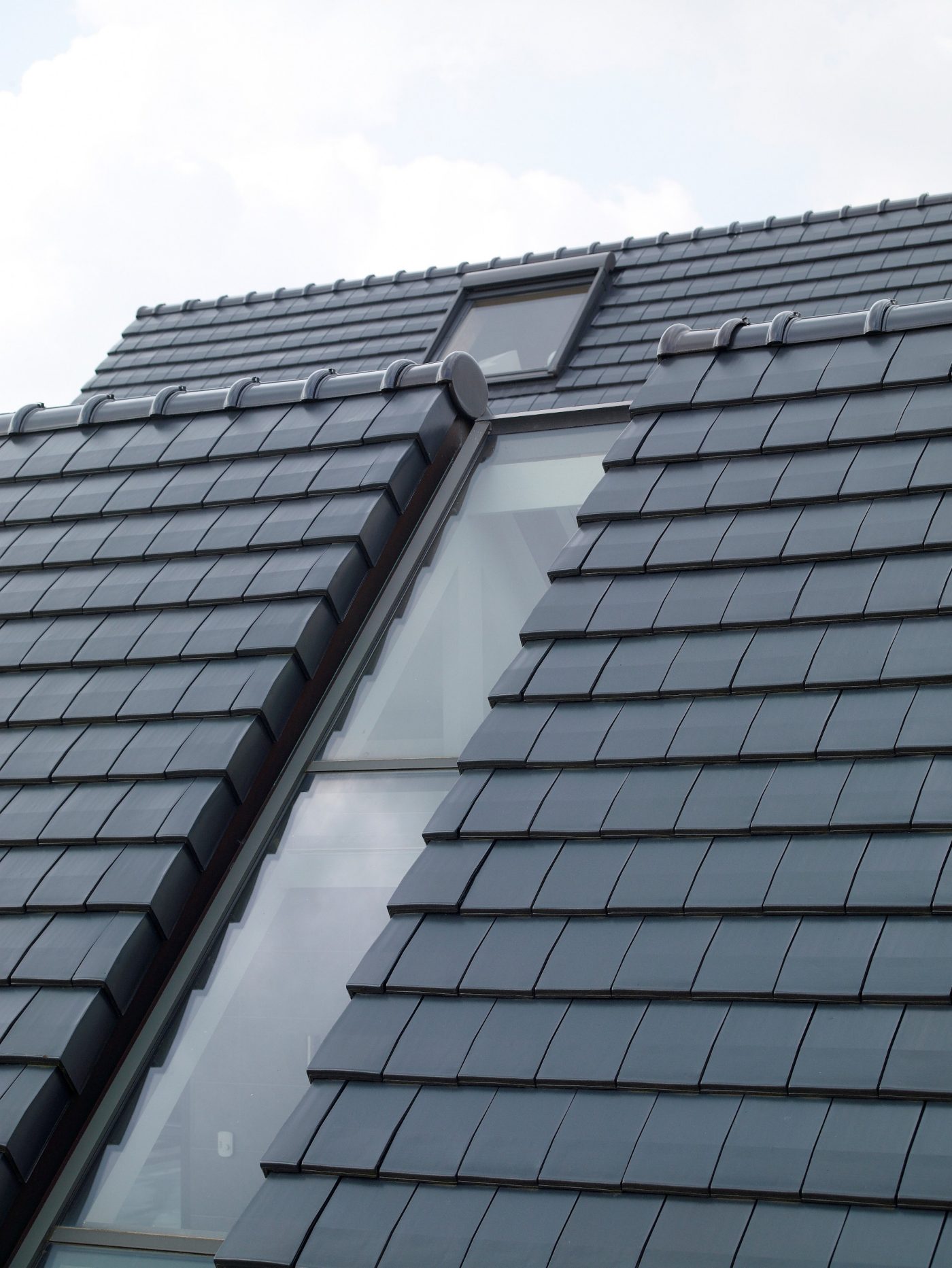

Reference photo new construction single family in De Pinte
