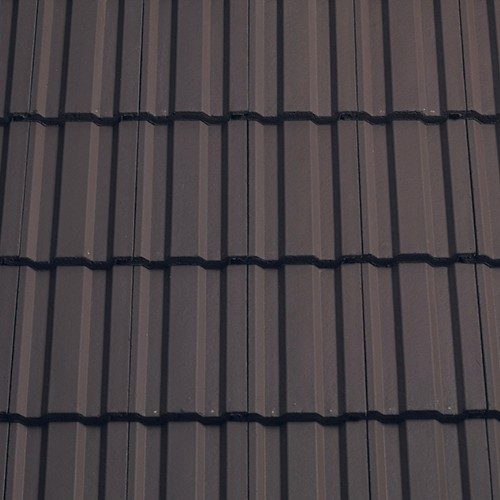

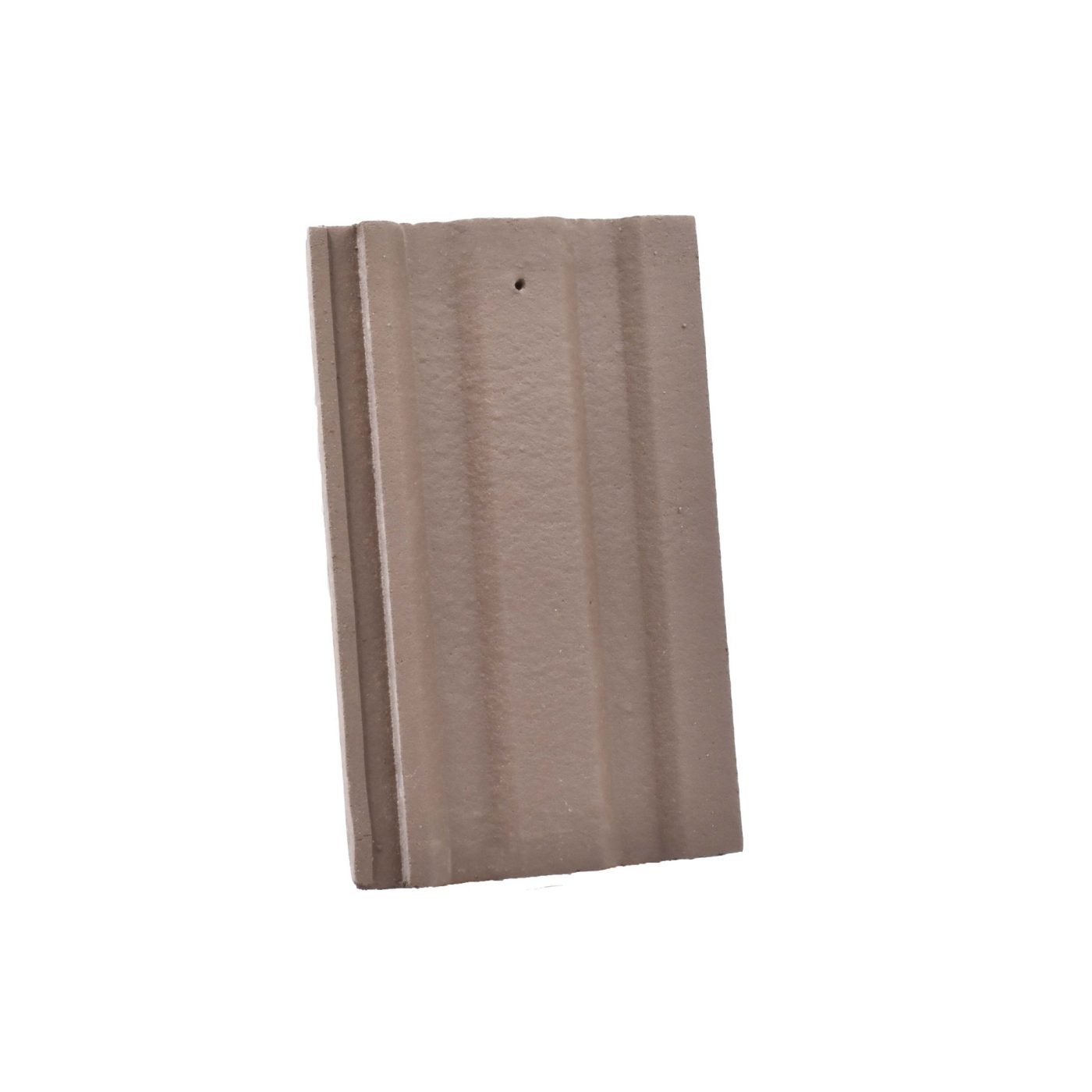

Standard Pattern Brown

Easy to install and highly durable, this tile is ideal for re-roofing and comes in convenient banded packs of eight.

Minimum Roof Pitch:

17.5° at a minimum of 100mm headlap
22.5° at a minimum of 75mm headlap
30° for all sandfaced colours regardless of headlap

Covering Capacity:

16.4 tiles per m2 at 75mm headlap
17.9 tiles per m2 at 100mm headlap

Maximum Weight Per Sqm 53.7 kg
Quantity Per Pallet 360

Length x Width
Length x Width
380 x 230 mm
Cover Width
Cover Width
200 mm
Hanging Length
Hanging Length
355 mm
Profile Depth
Profile Depth
40 mm
Minimal Batten Gauge
Minimal Batten Gauge
260 mm
Maximum Batten Gauge
Maximum Batten Gauge
305 mm

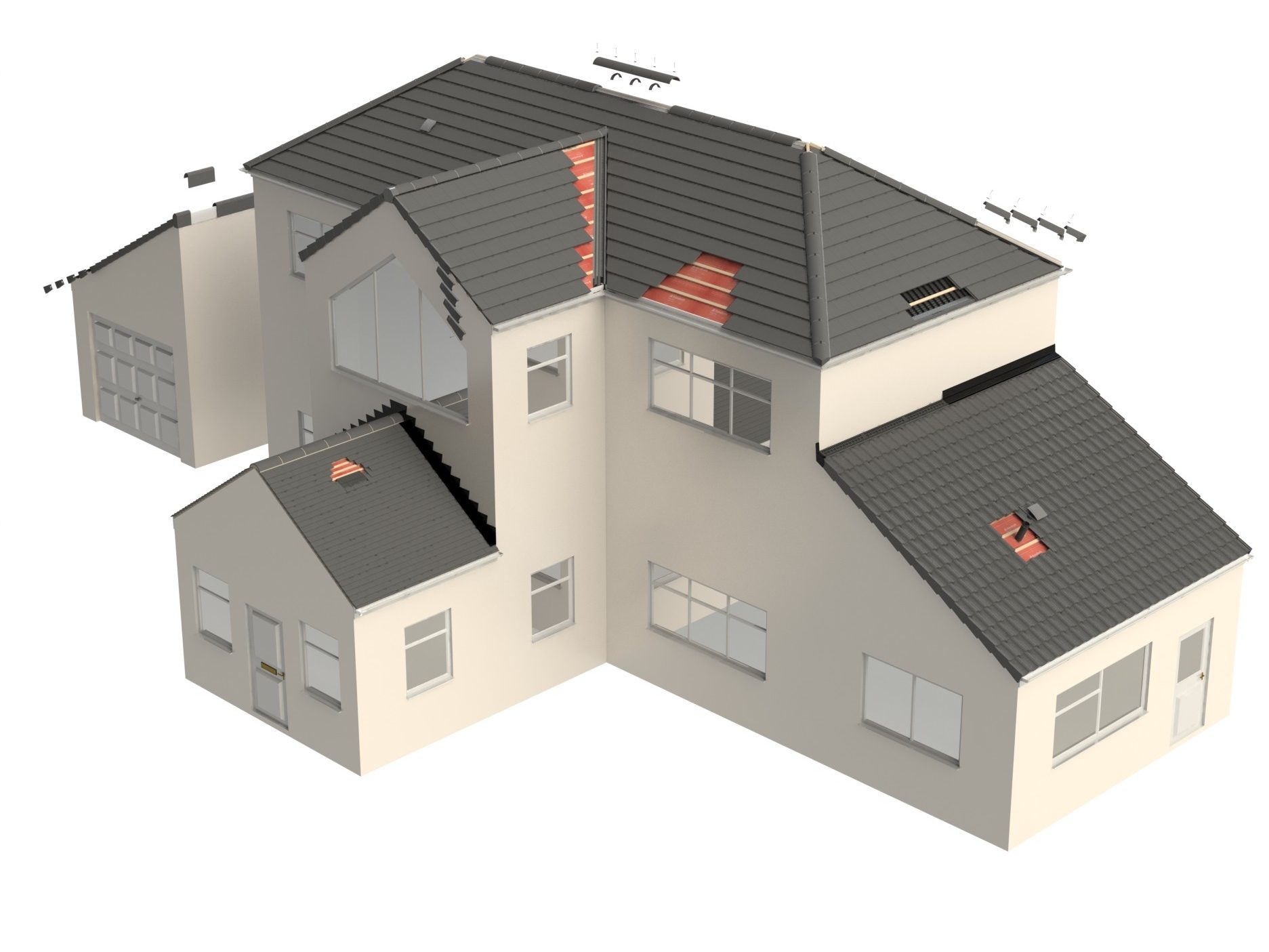

Roof Systems and Accessories

Discover our comprehensive range of roof systems and accessories

As well as the UK's largest range of roof tiles, Wienerberger offers all the systems and accessories you need for your next project, including hip systems, ventilation solutions, underlays, dry ridge and dry verge systems, and more.

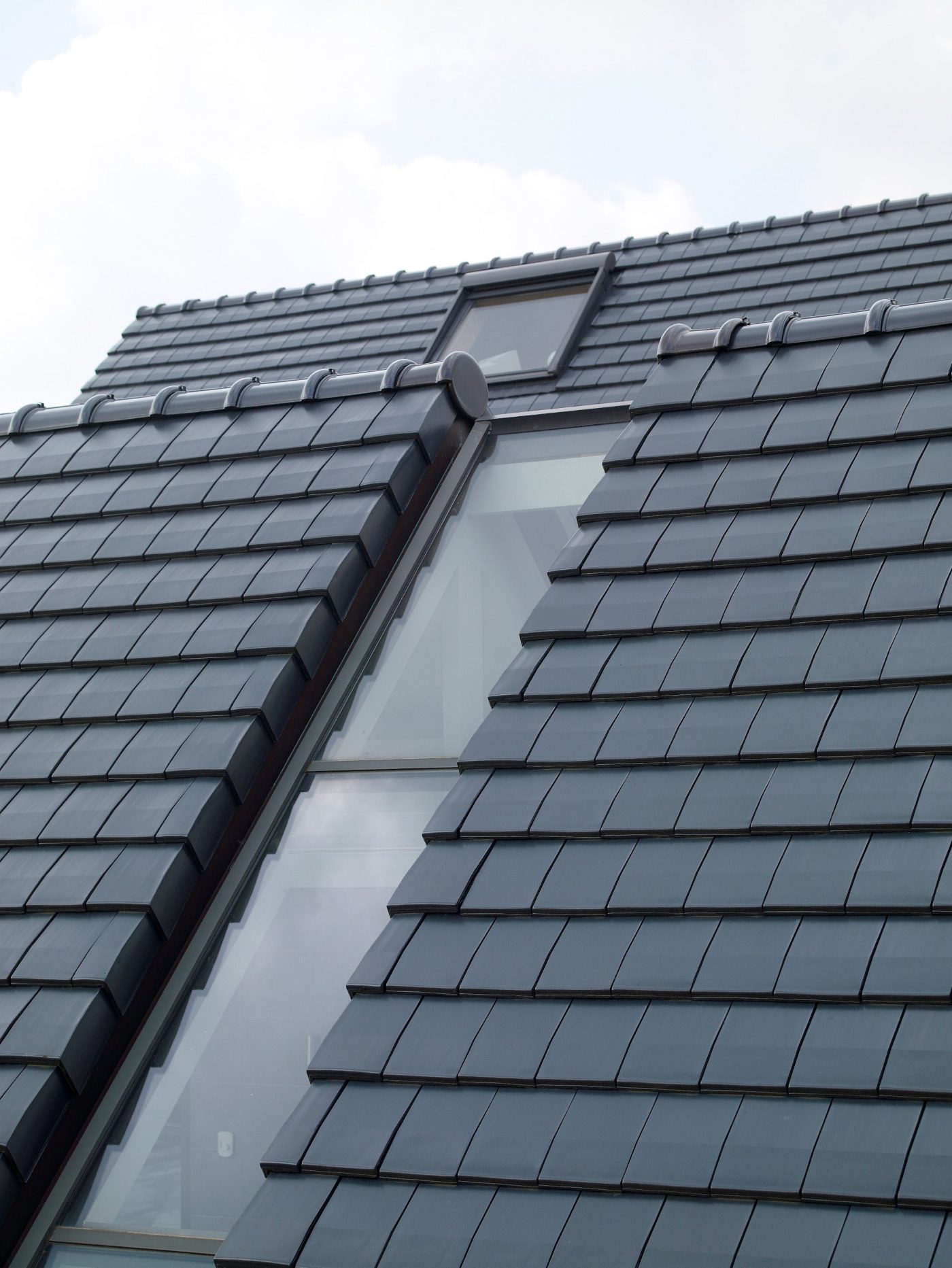

Reference photo new construction single family in De Pinte
