Angle and Cant Bricks

Angle bricks allow brickwork to turn through 30, 45 & 60 degree angles on plan, with variations in leg dimensions to achieve different bond pattern requirements. Cant bricks allow chamfer detailing to be achieved within brickwork to doors, windows and corner details as well as other locations. These can also be used to form chamfered cappings used on walls.

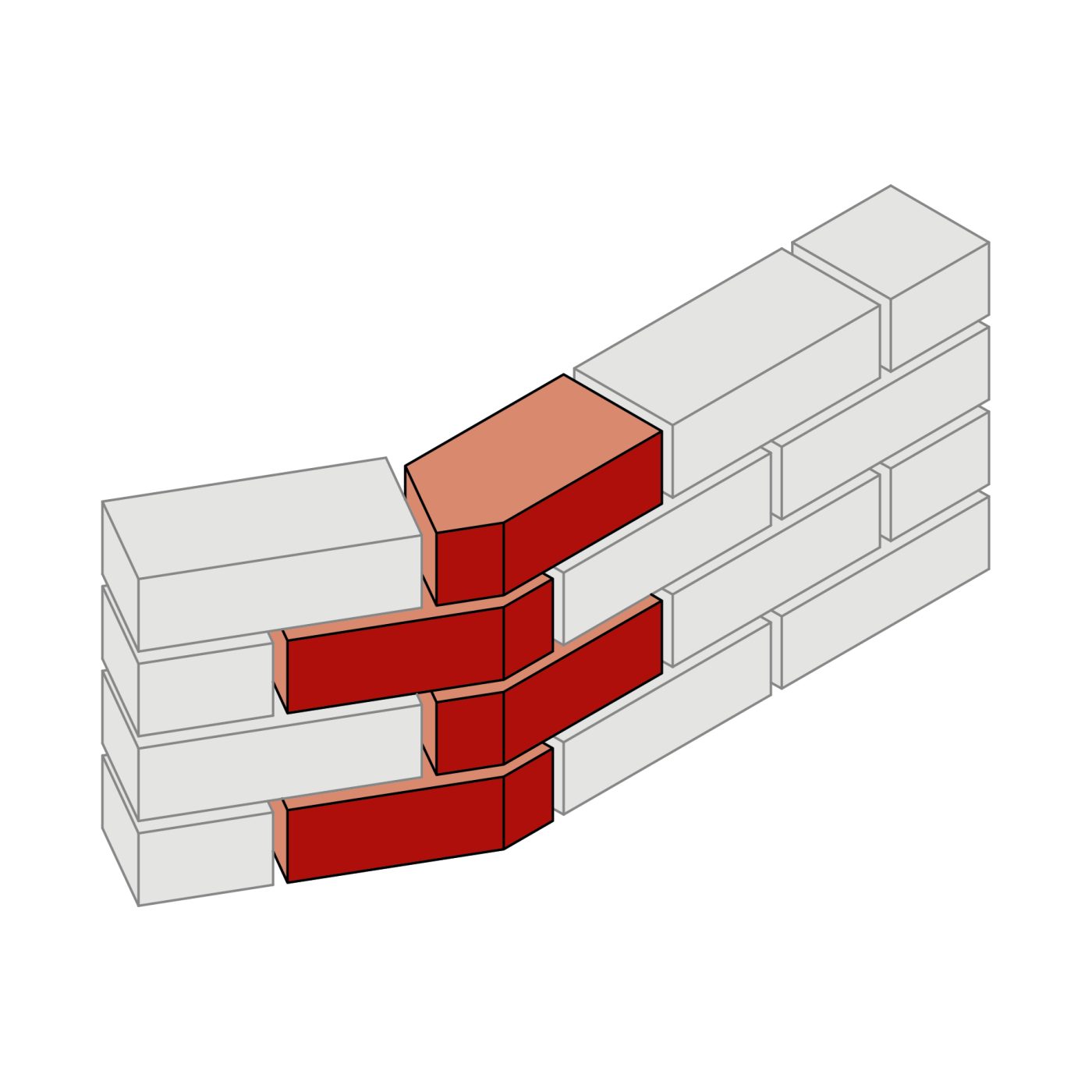

AN.1

Squint

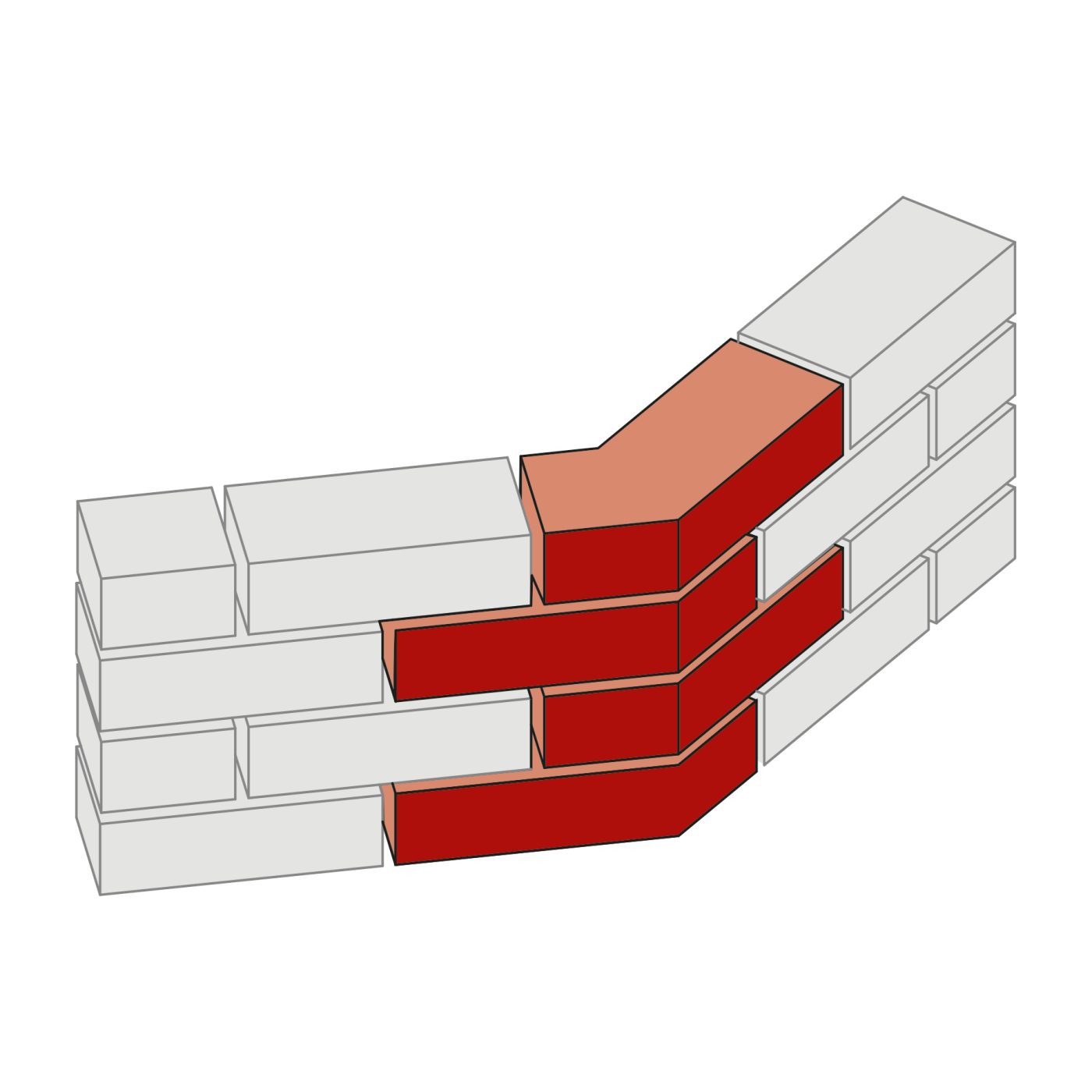

AN.2

External Angle

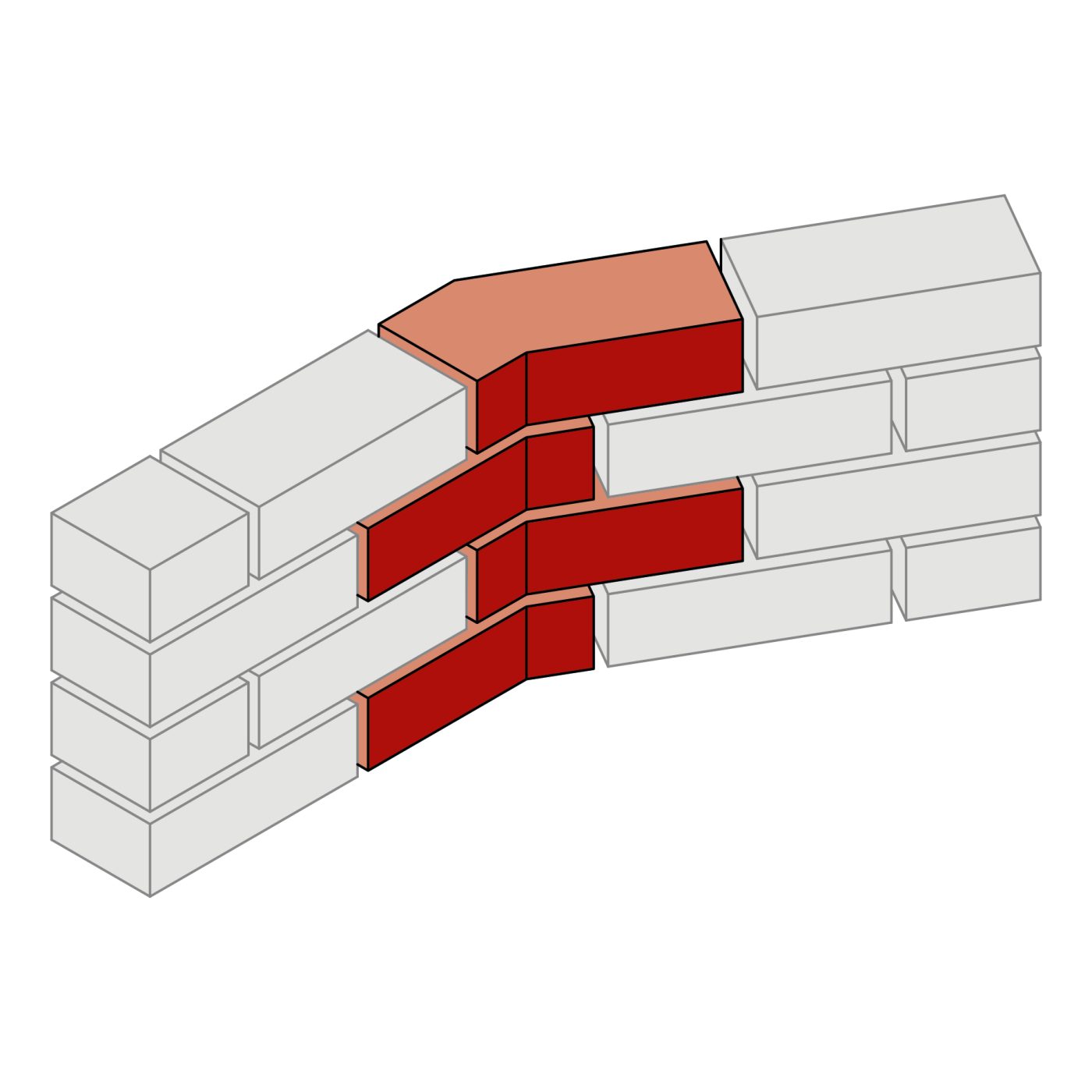

AN.3

Internal Angle

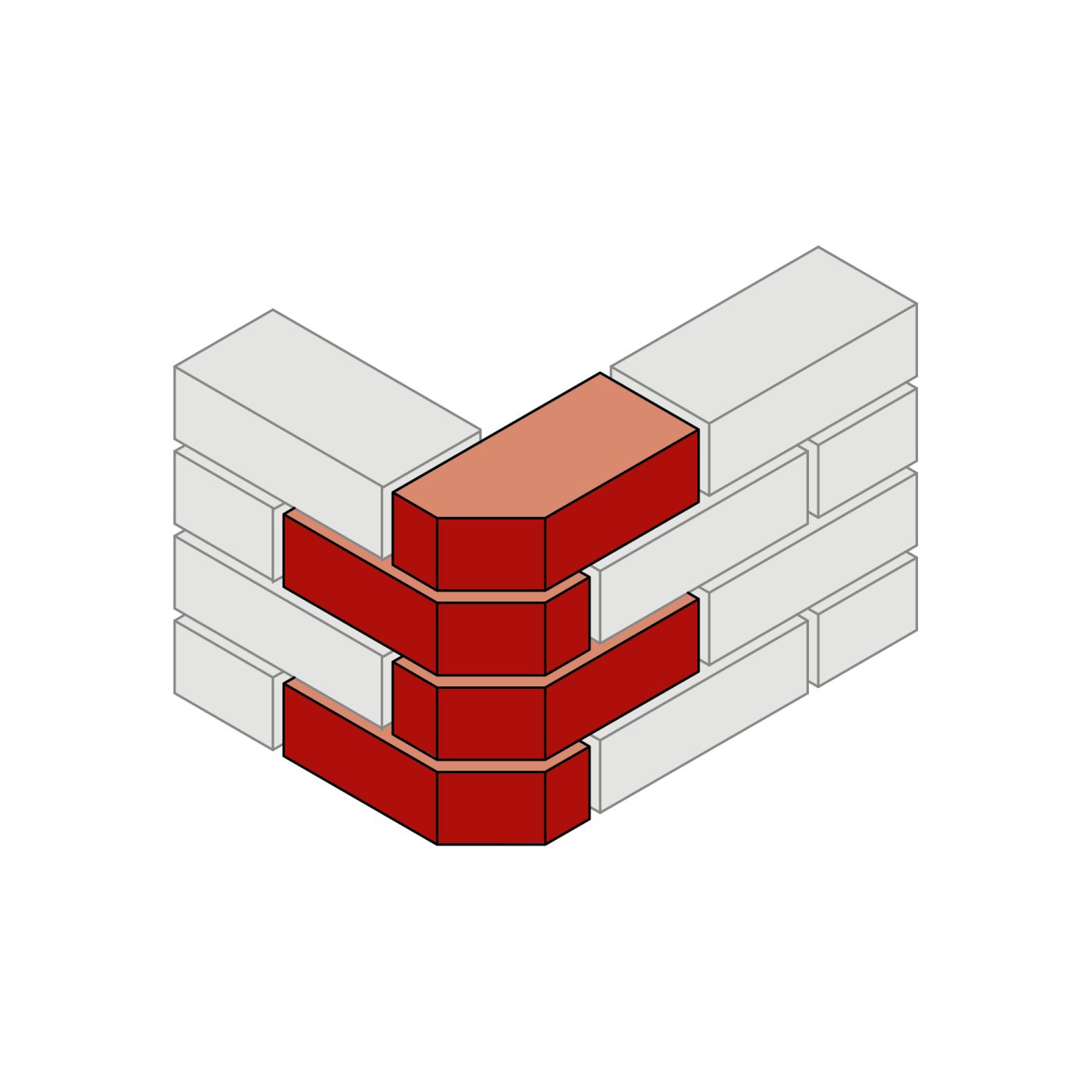

AN.5

Single Cant

AN.6

Double Cant

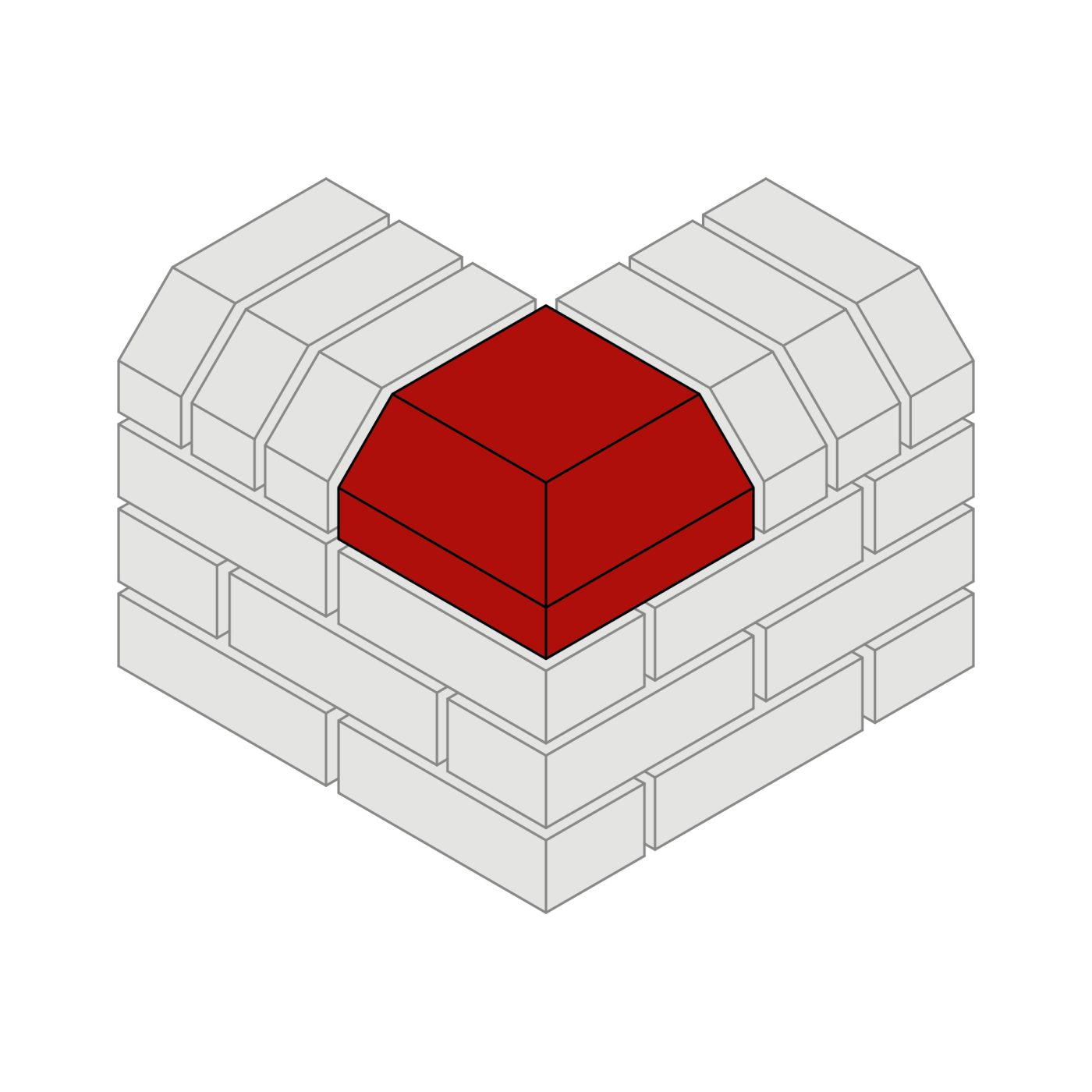

AN.7

Single Cant External Return

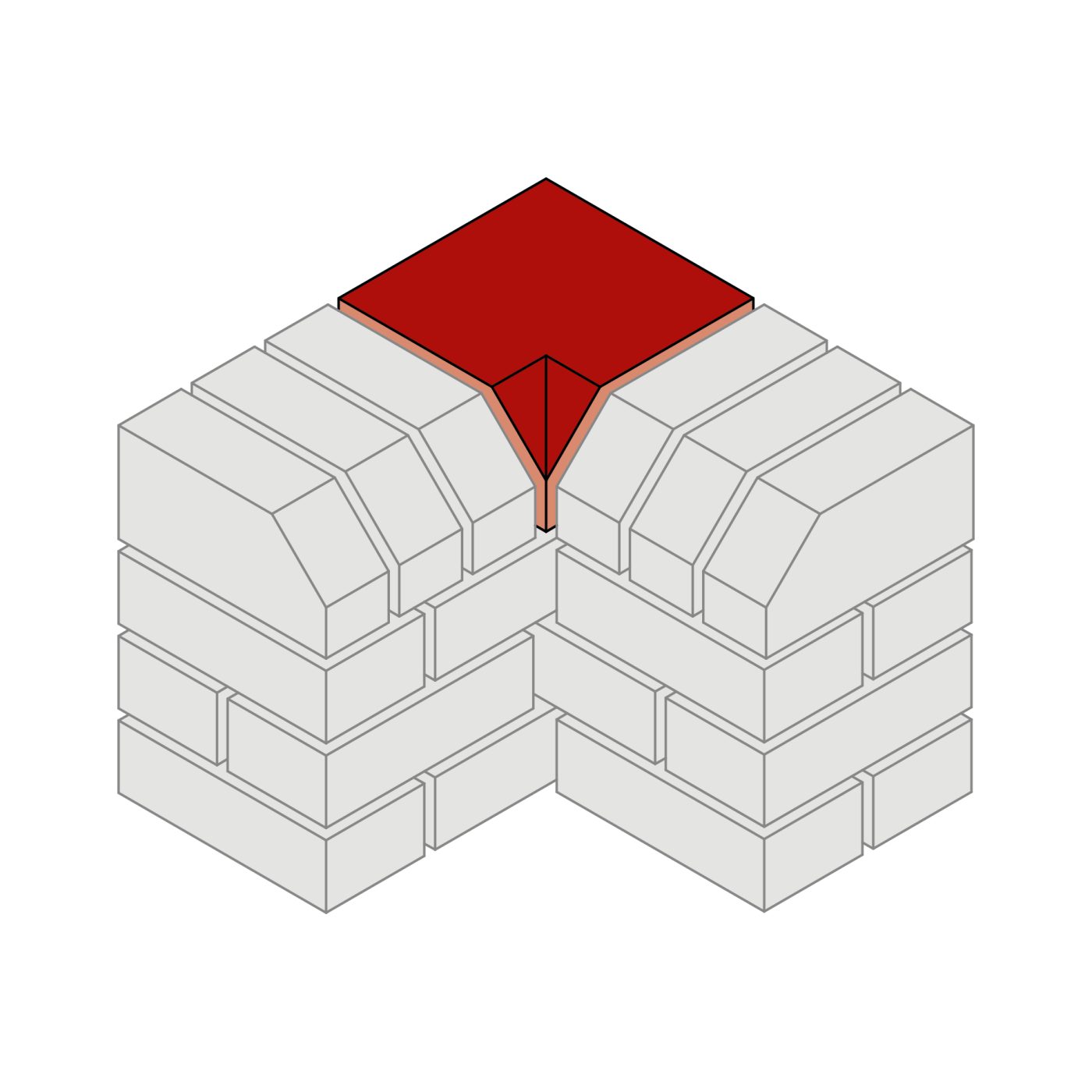

AN.8

Single Cant Internal Return with Internal Mitre

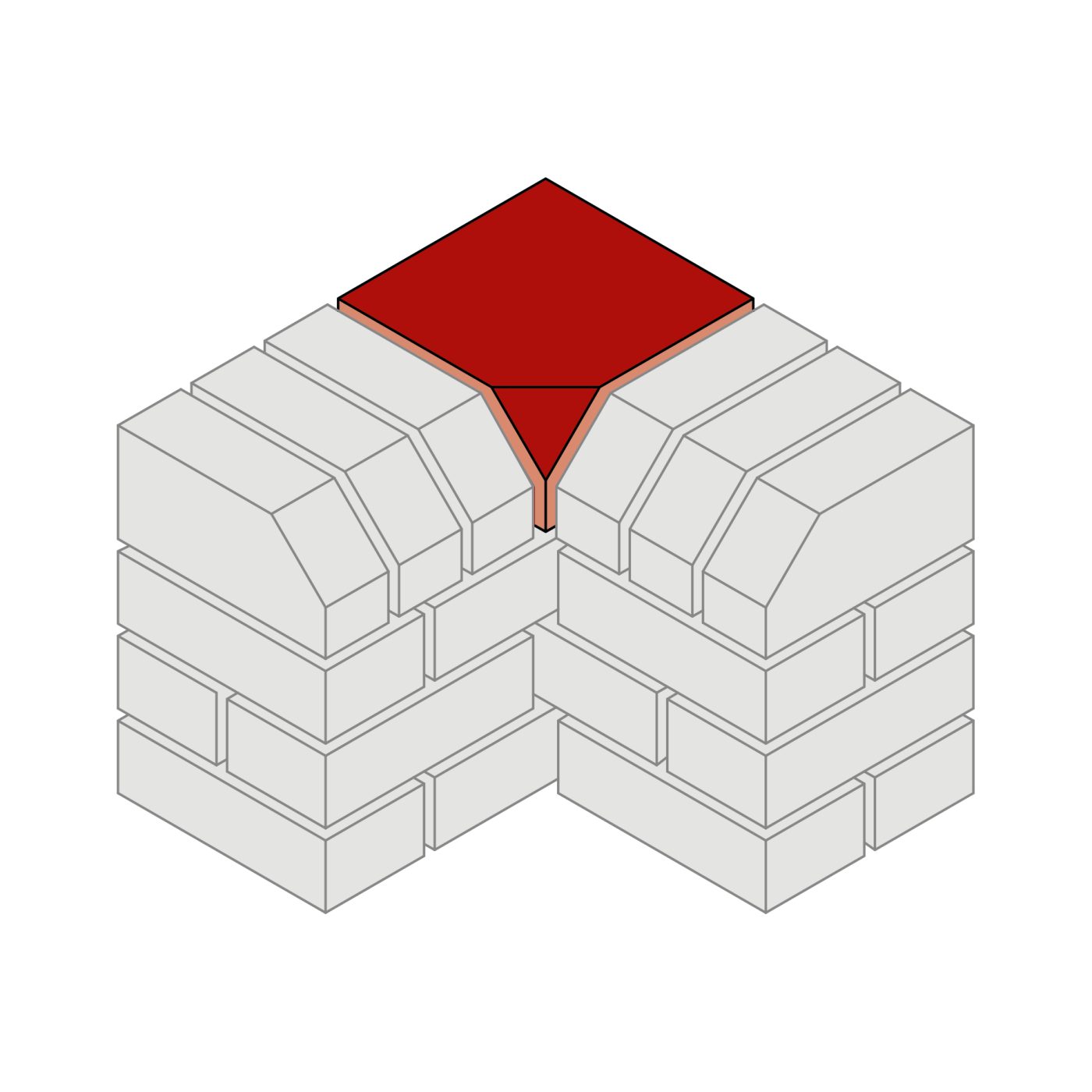

AN.9

Single Cant Internal Return with Internal Slope

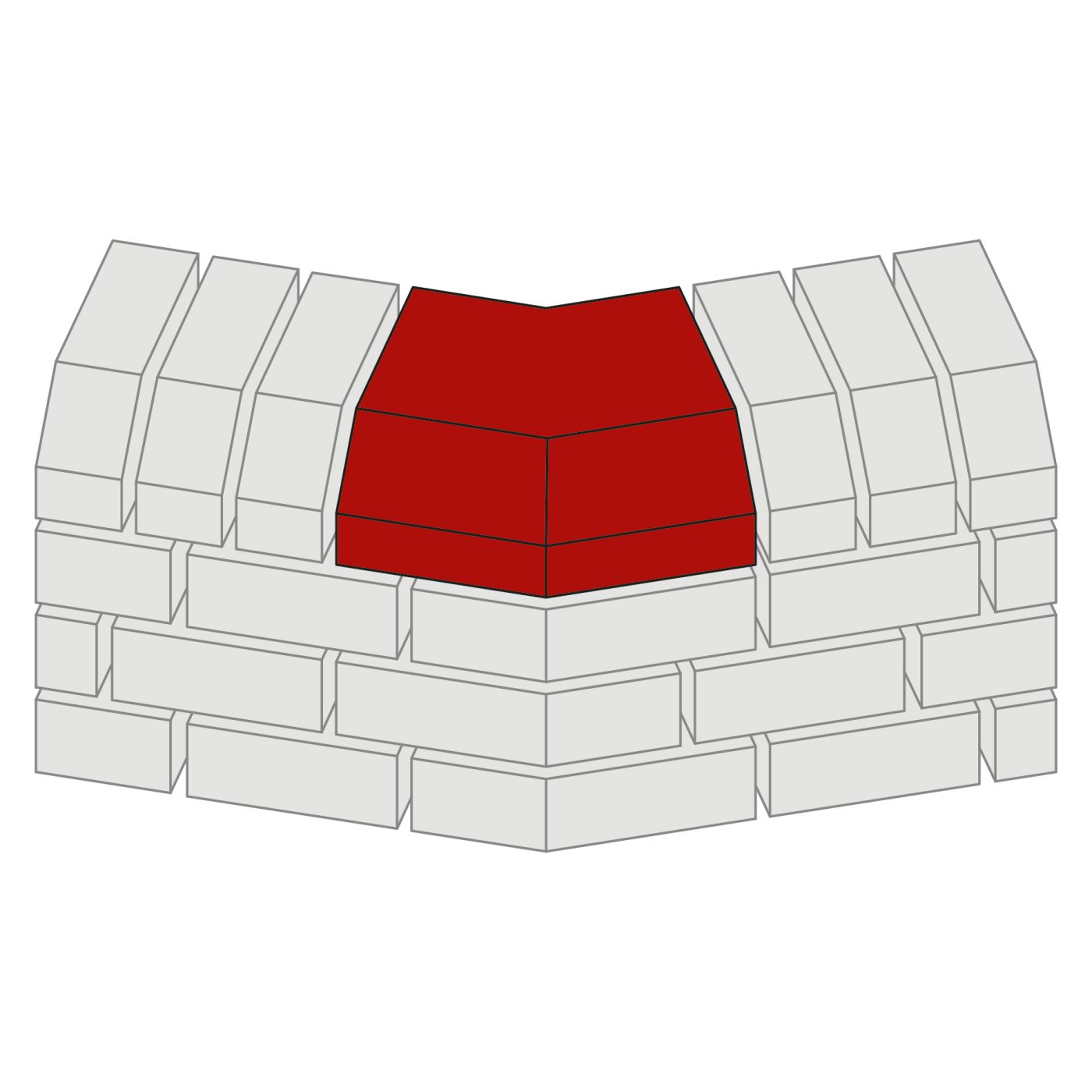

AN.10

Single Cant External Angle*

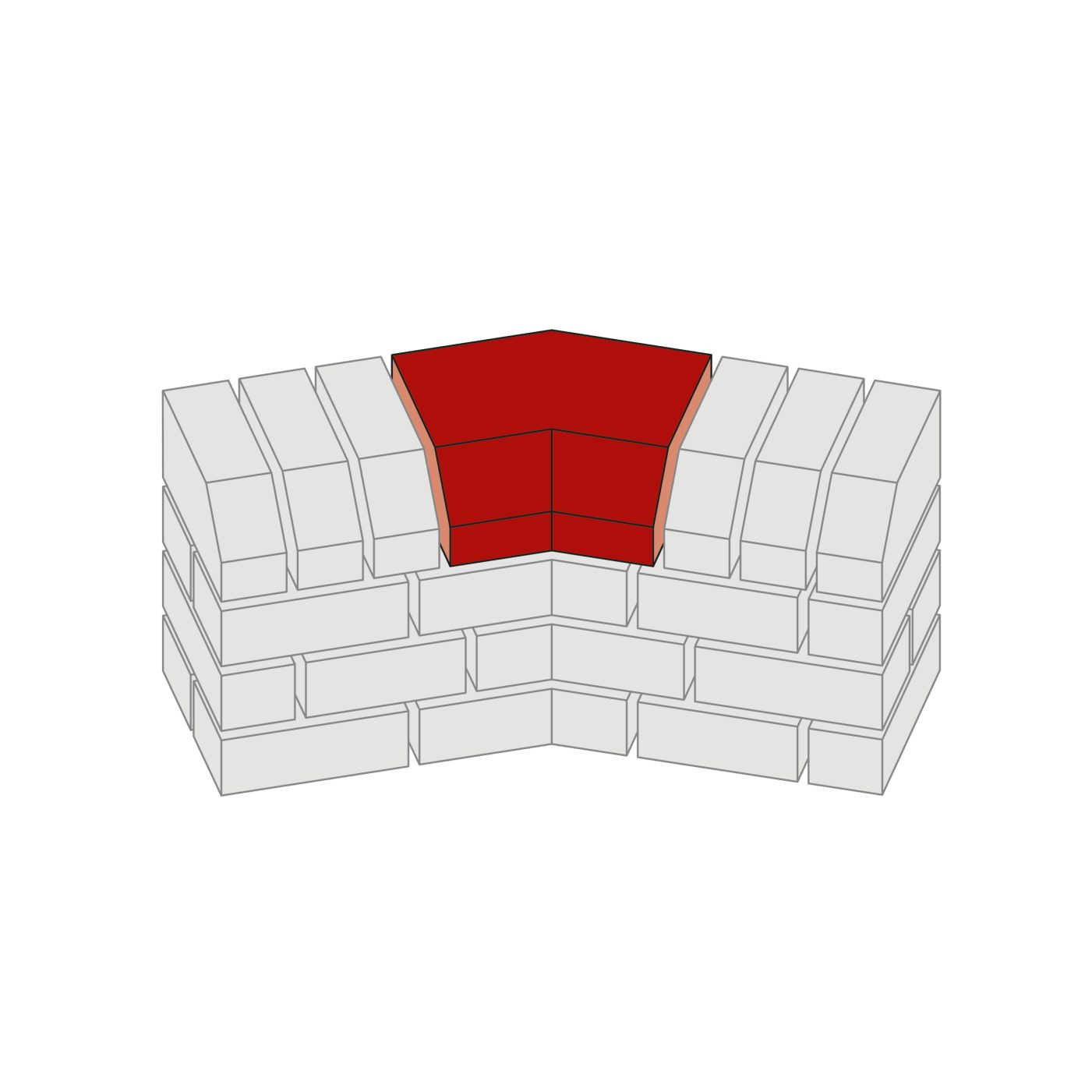

AN.11

Single Cant Internal Angle*

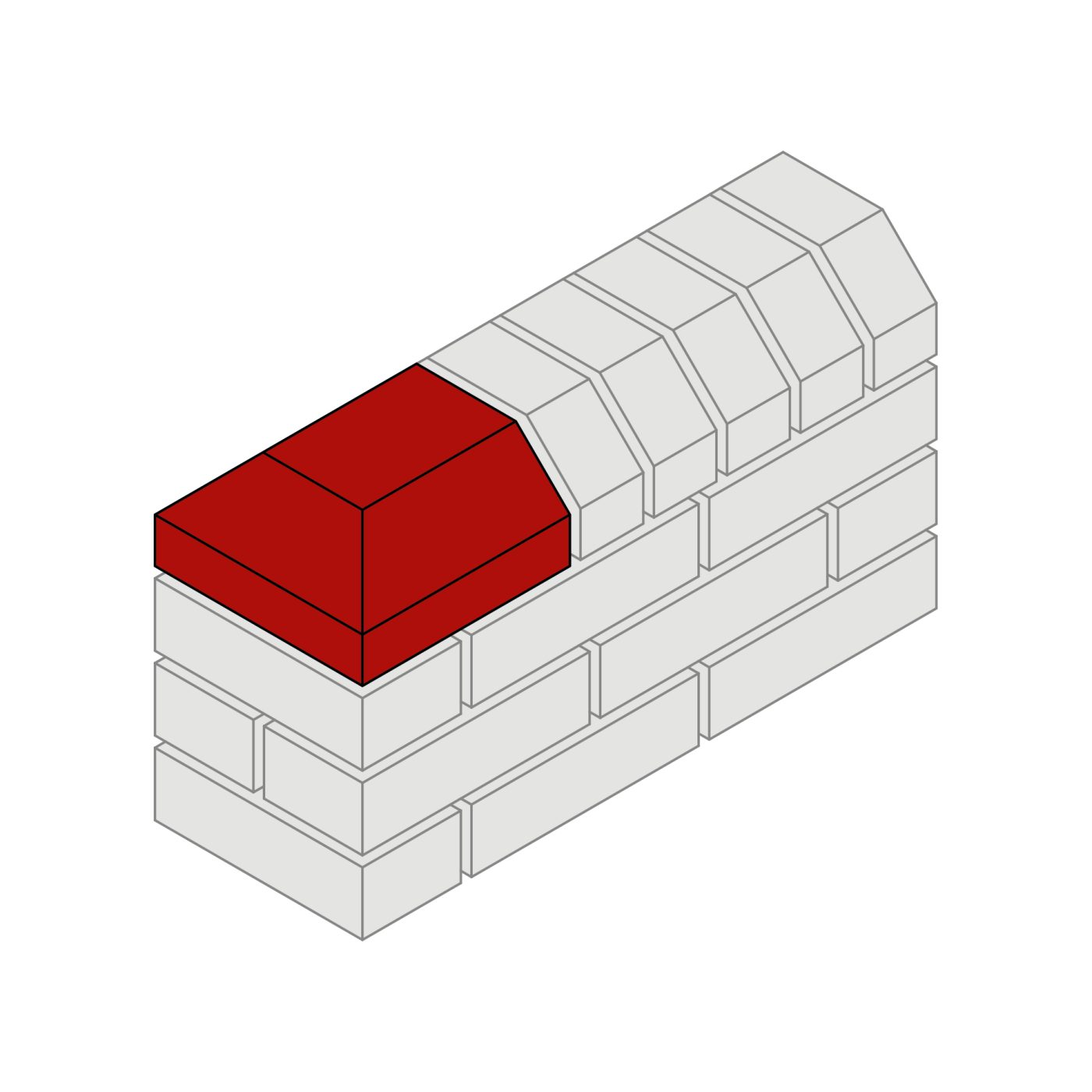

AN.12

Double Cant Stop End

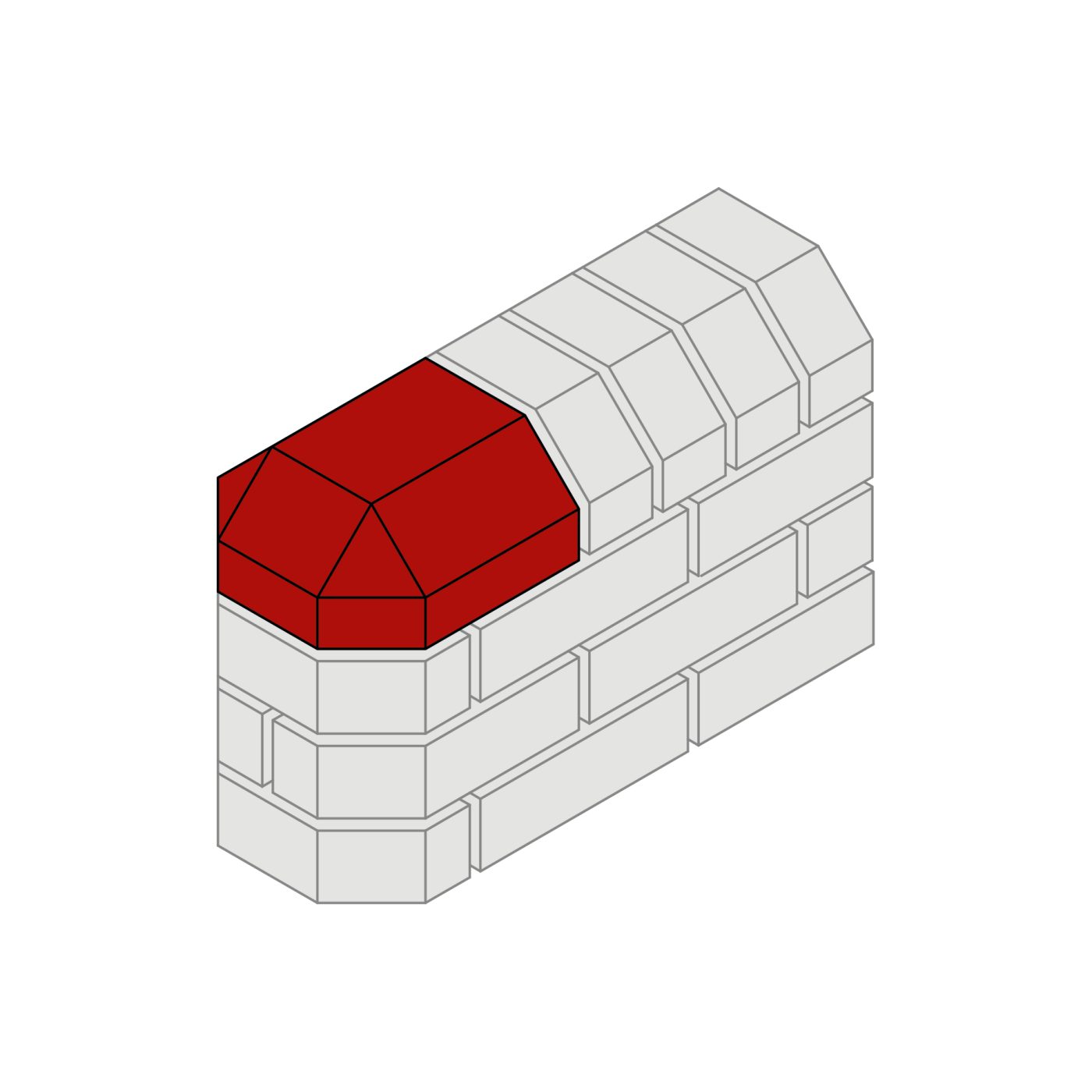

AN.13

Double Cant Stop End

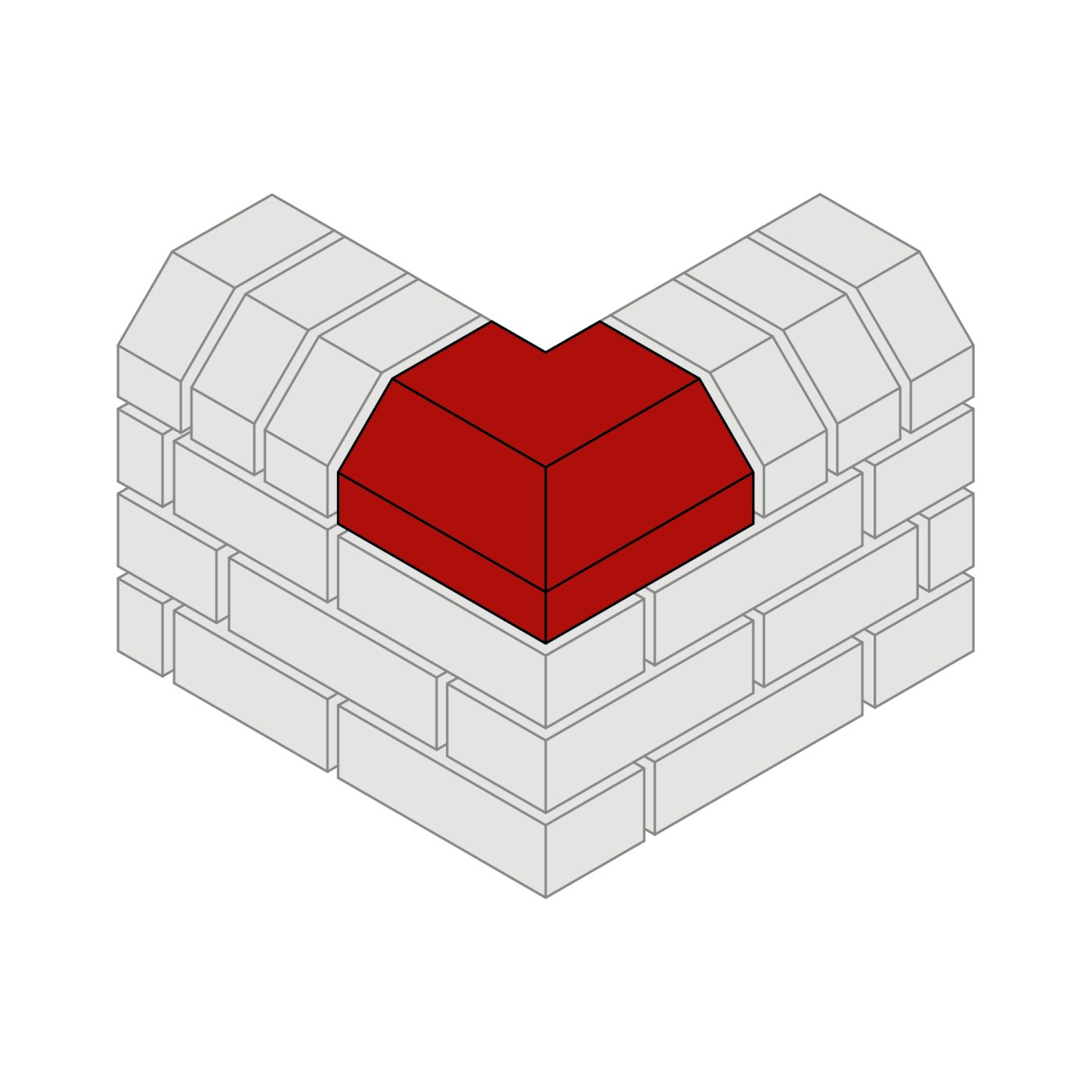

AN.14

Double Cant External Return with Internal Mitre

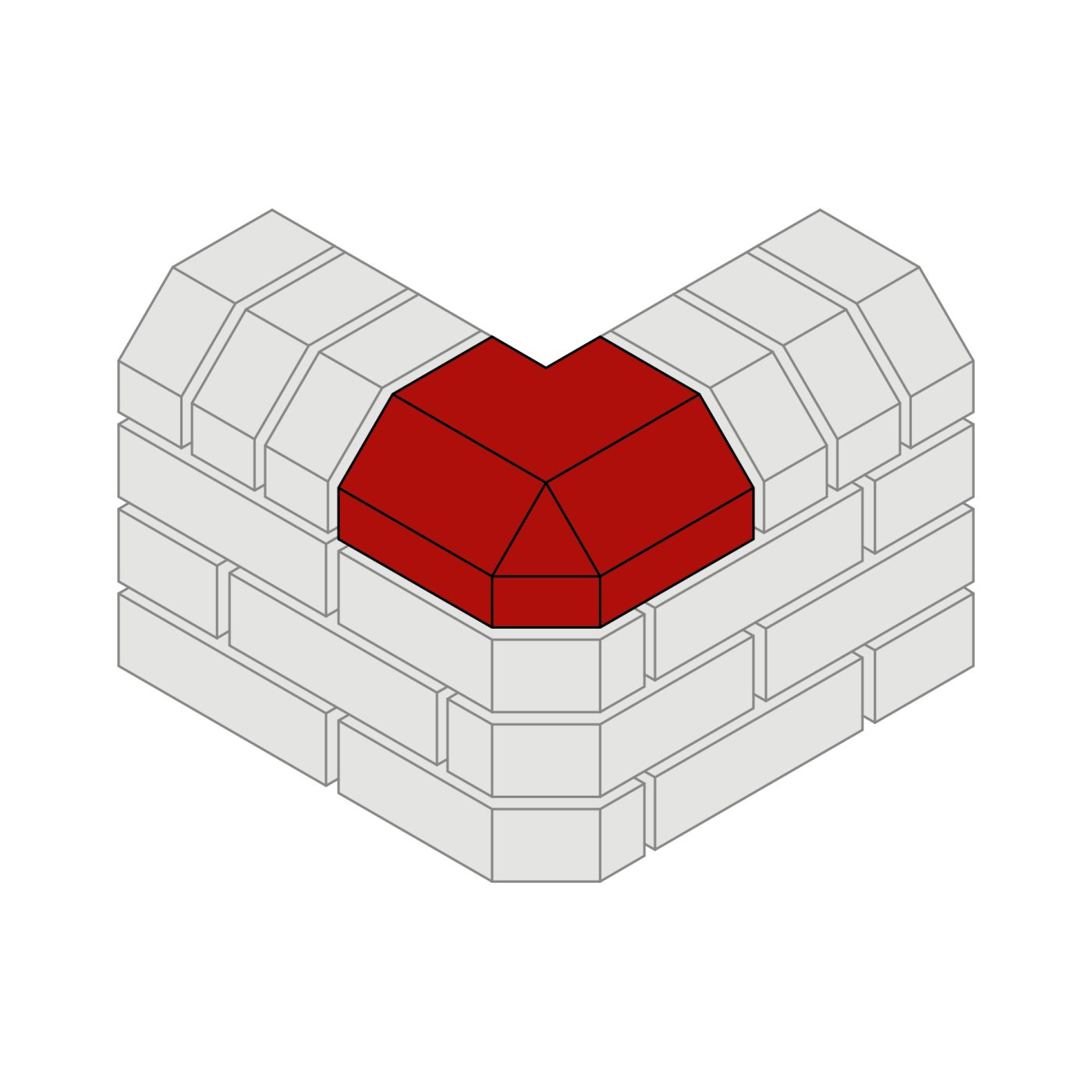

AN.15

Double Cant External Return with Internal Mitre

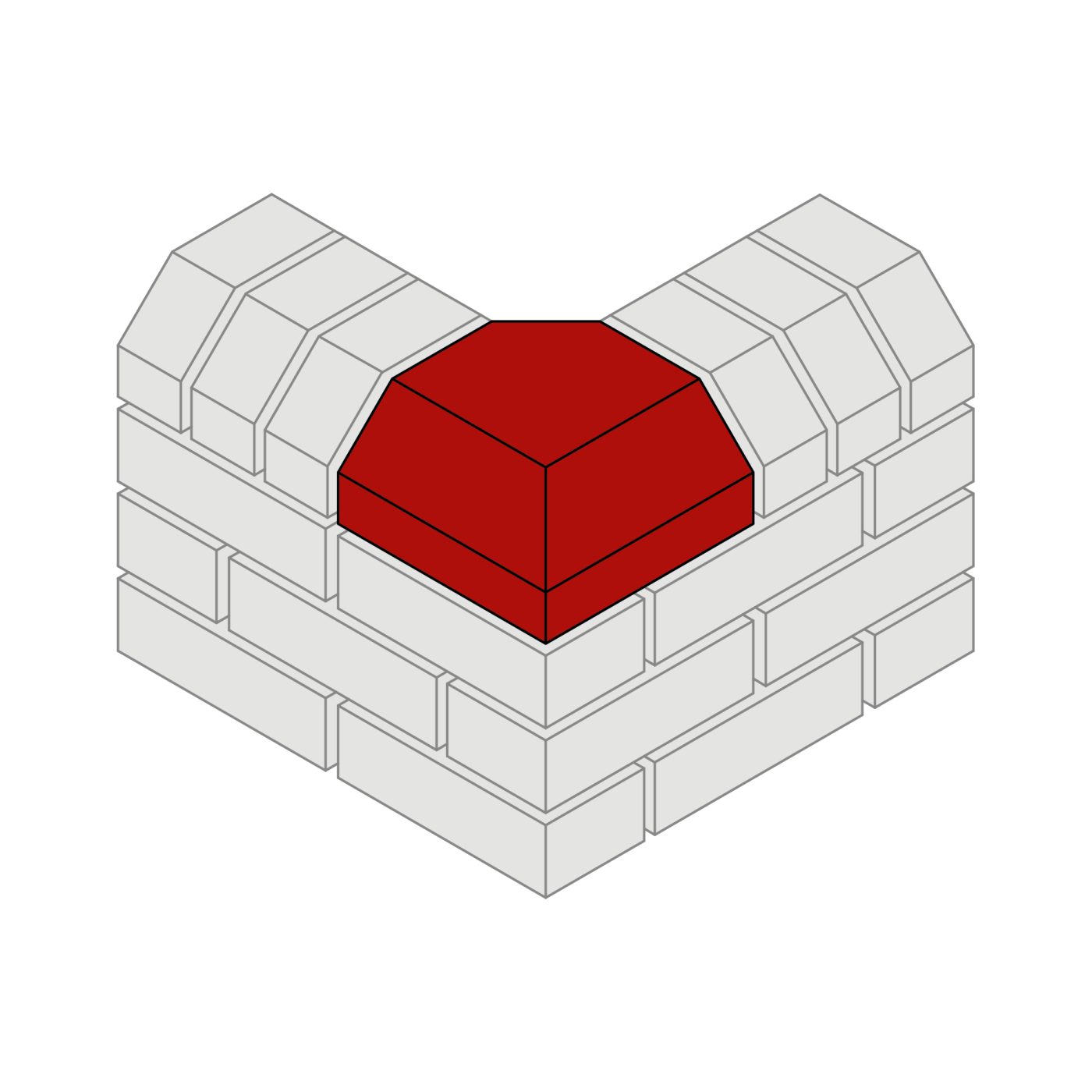

AN.16

Double Cant External Return with Internal Slope

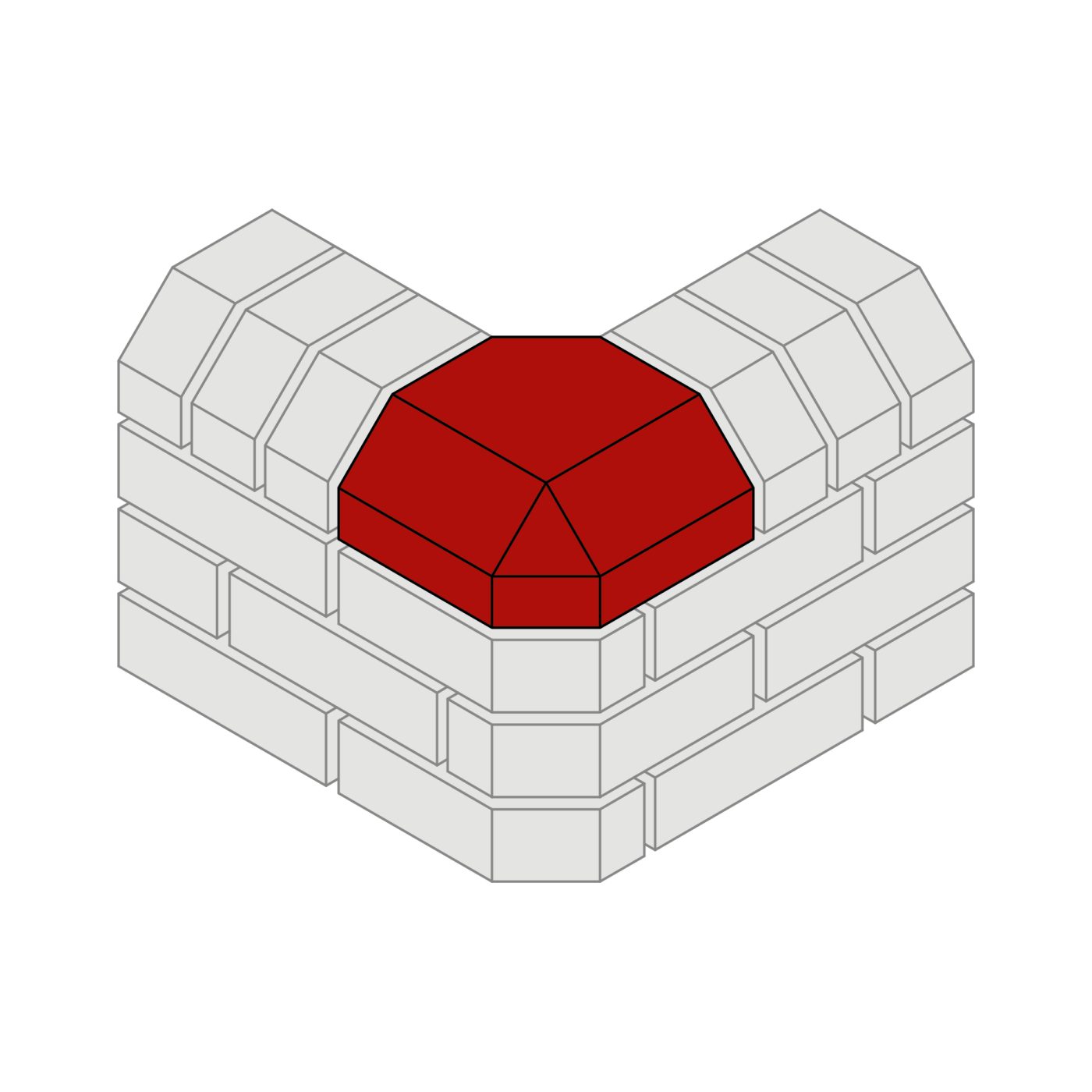

AN.17

Double Cant External Return with Internal Slope

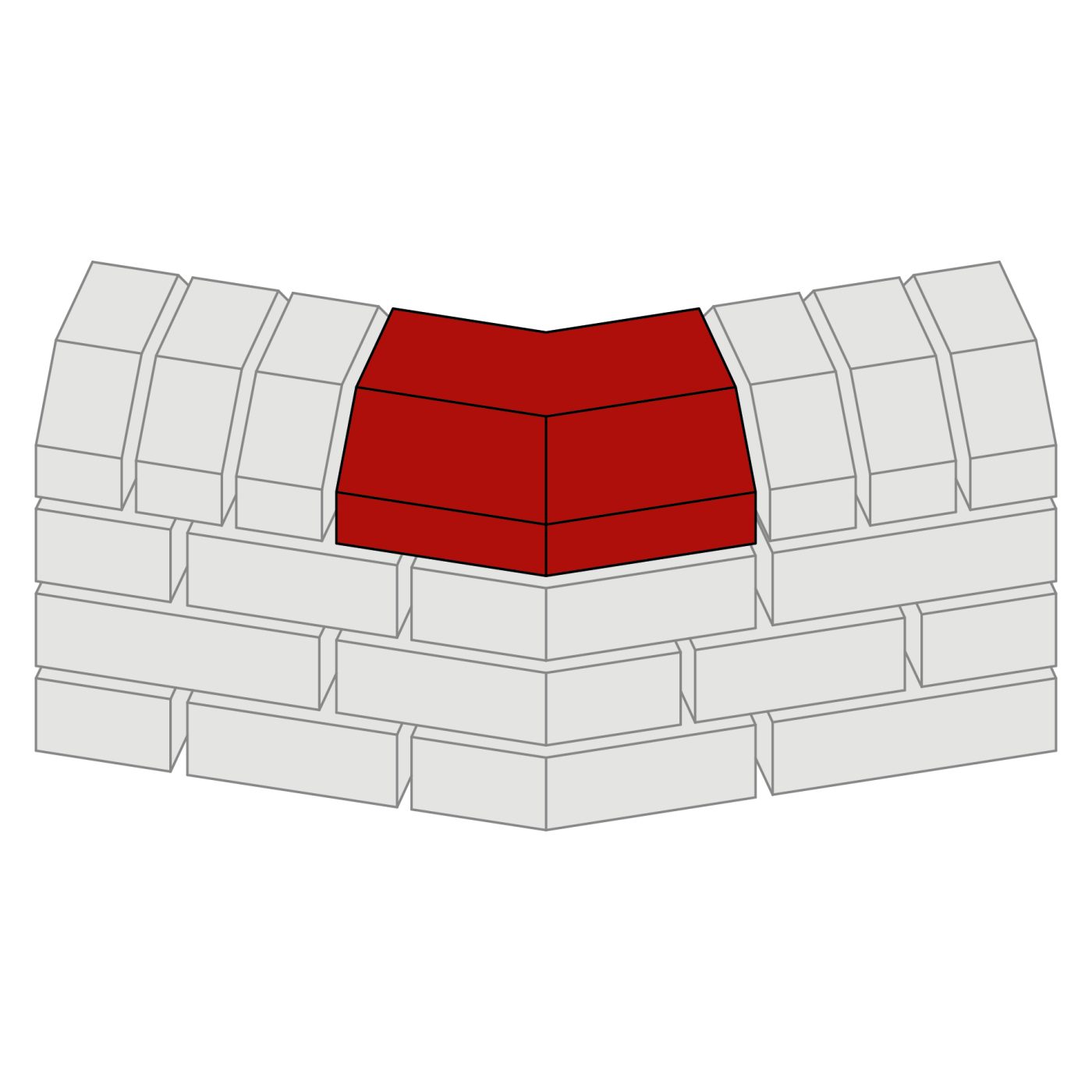

AN.18

Double Cant Angle*

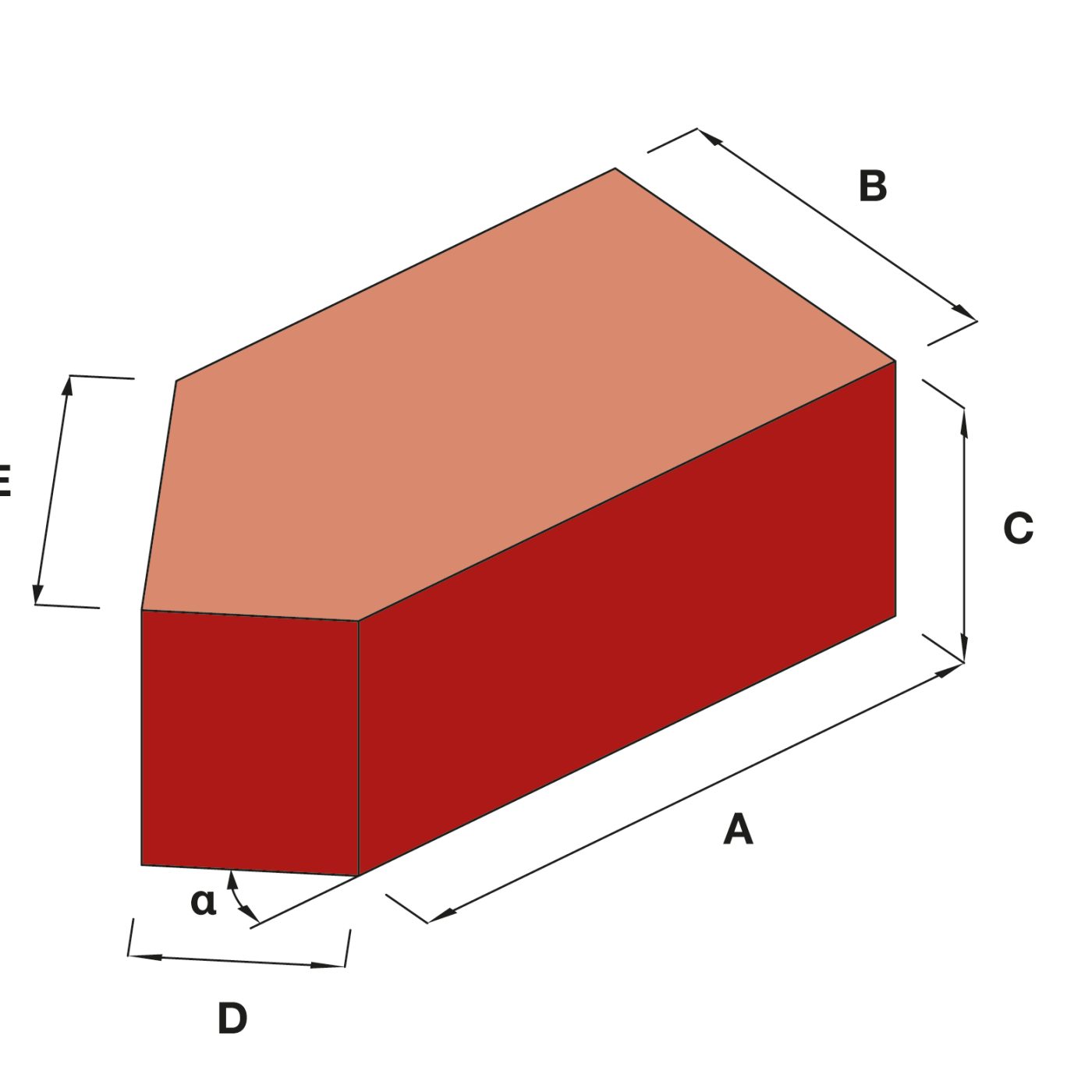

W.AN.12.73

73mm Squint

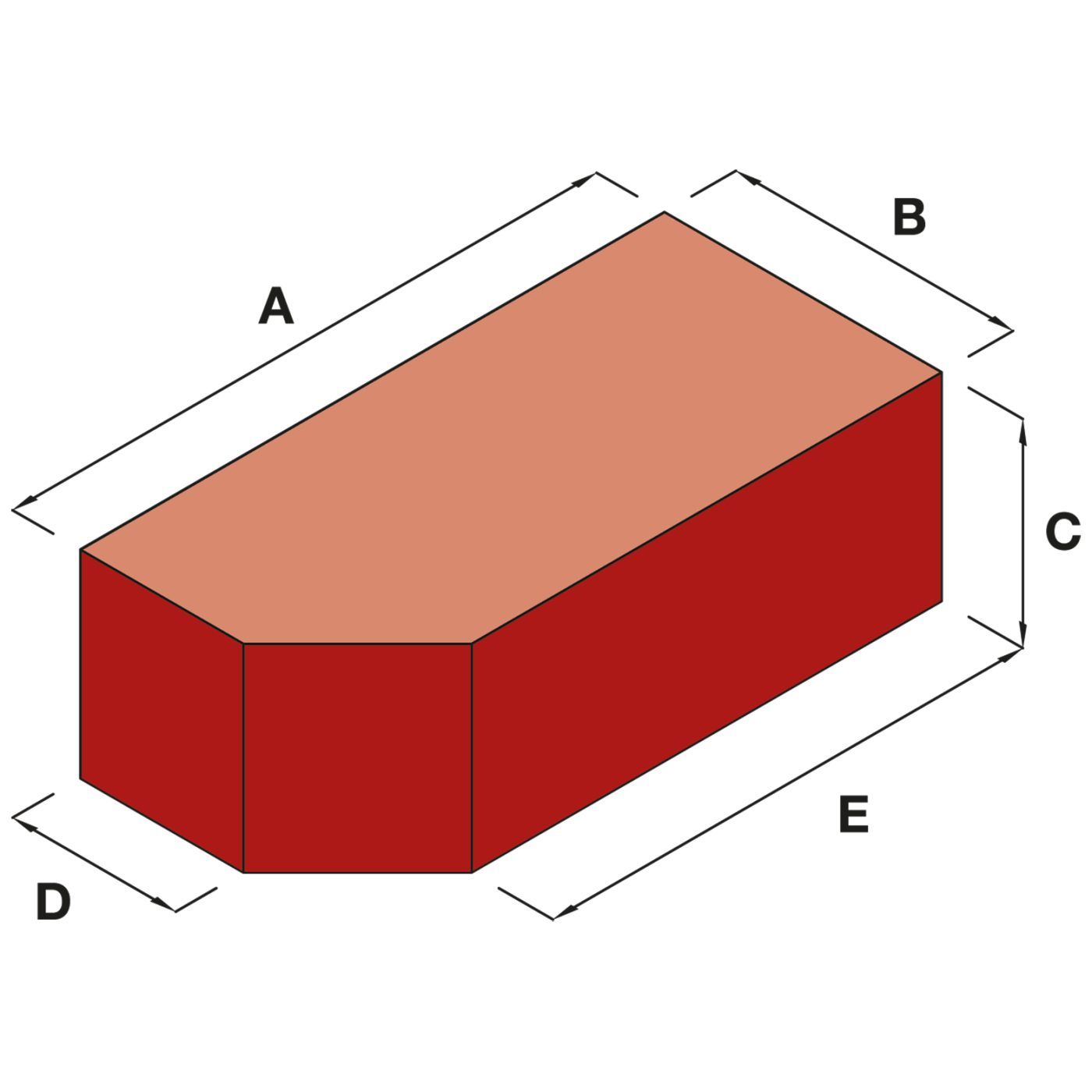

W.AN.51 & W.AN.52

73mm Single Cant

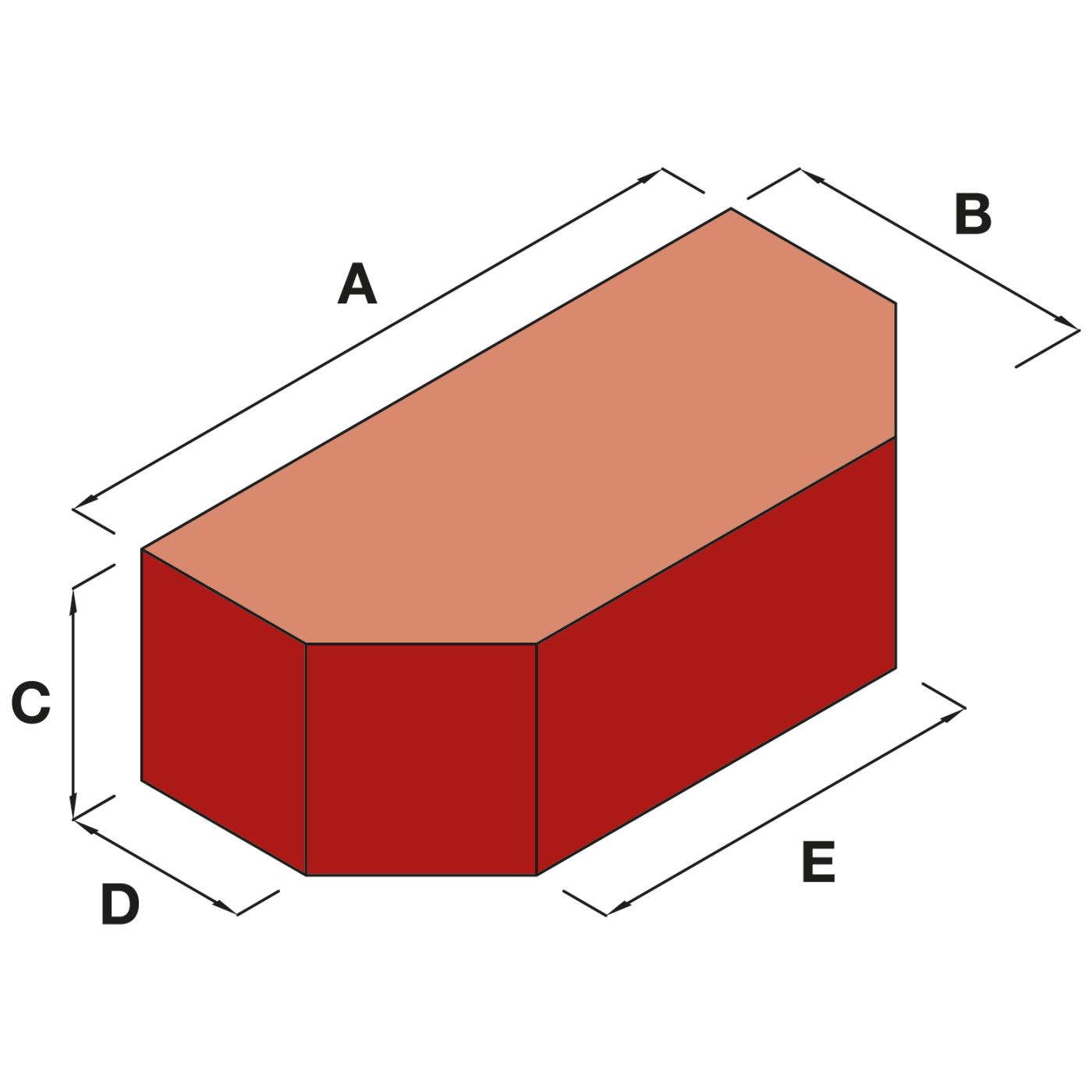

W.AN.61 & W.AN.62

73mm Double Cant

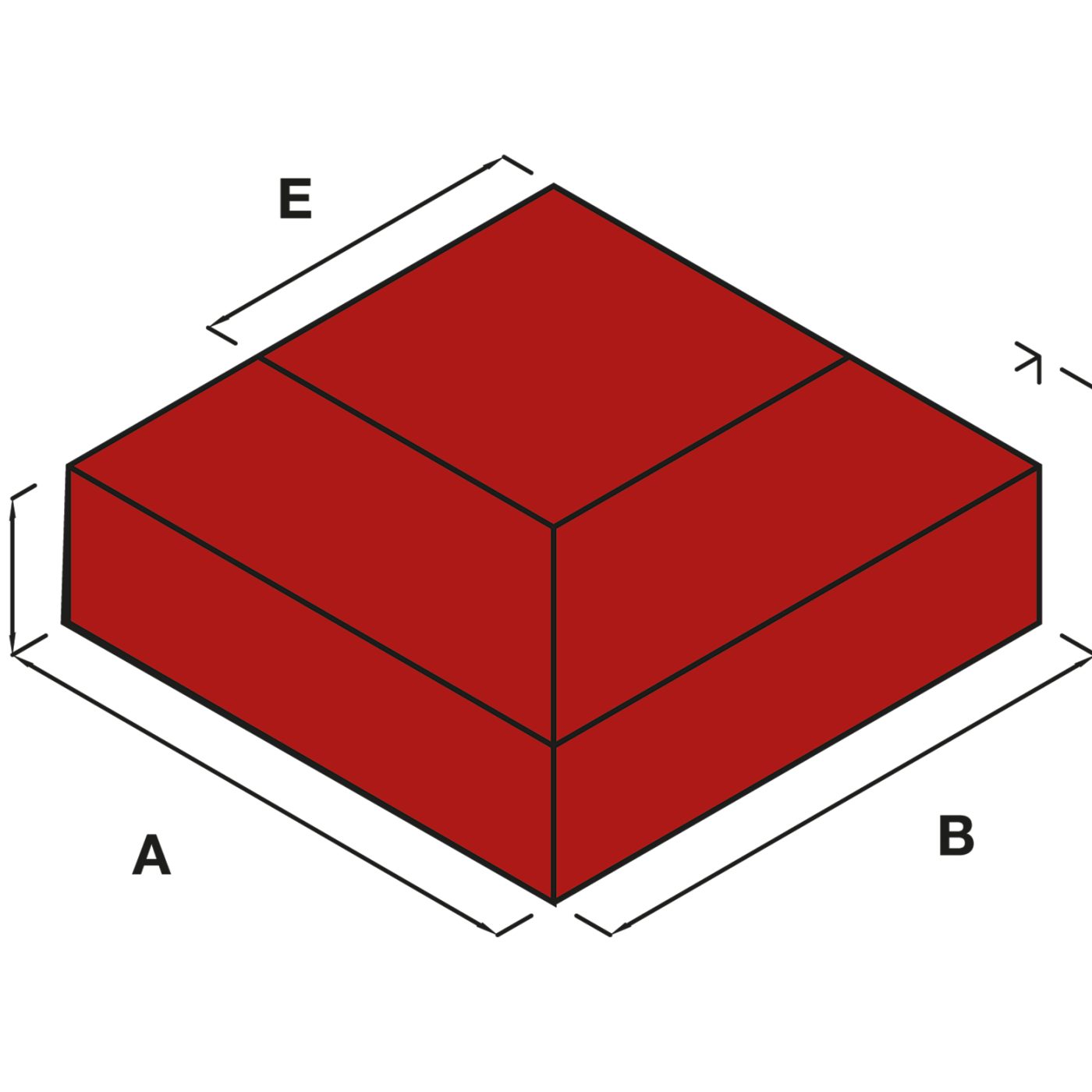

W.AN.20

Canted Pier Cap

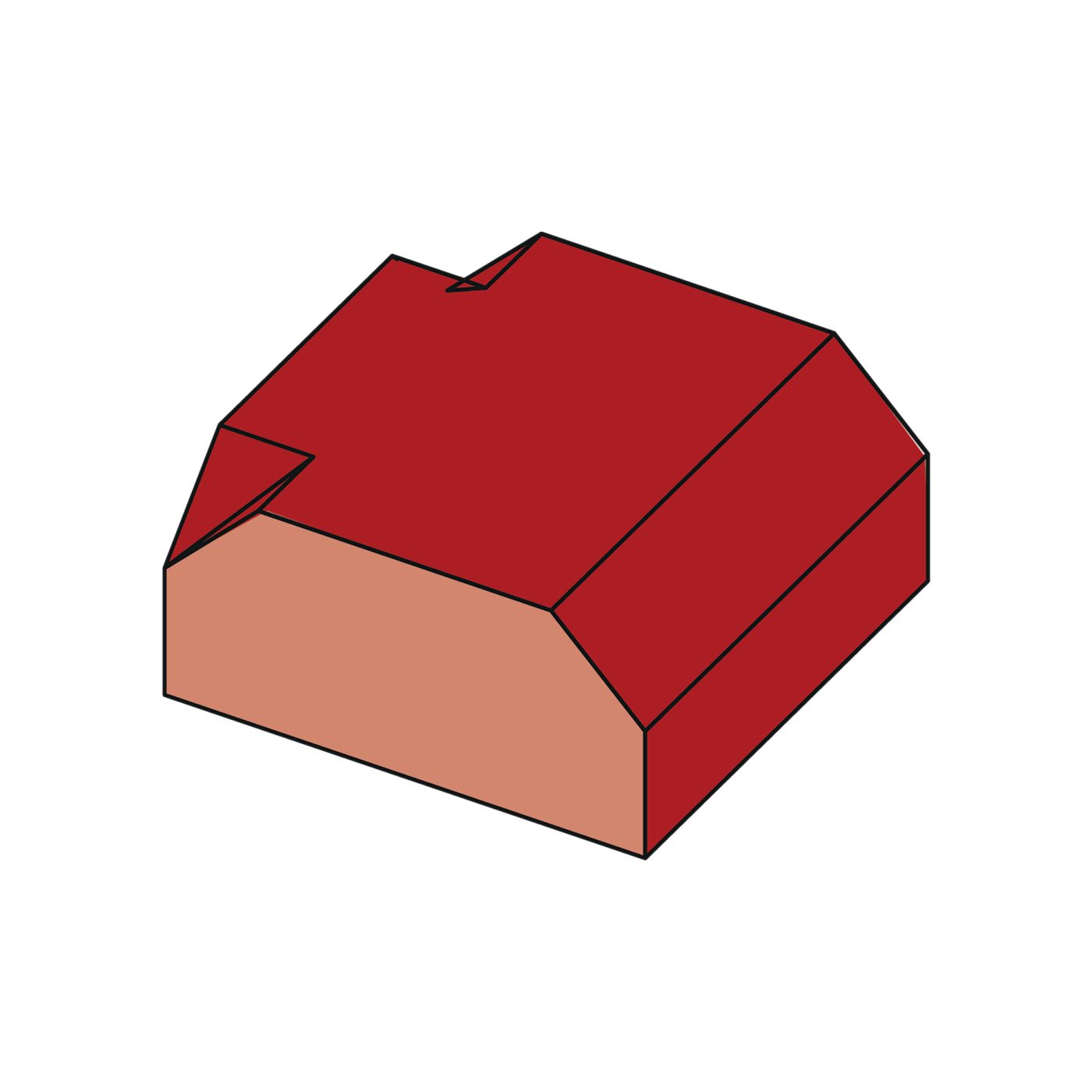

W.AN.21

Double Cant T-Junction

* May be supplied in sections

Red indicates standard face matched to brick type. Where additional faces are required, please liaise with our Design Services Department. Please note that special shaped bricks may be solid, perforated or frogged unless specified otherwise. Manufactured special shapes may vary in colour and texture to the equivalent facing brick product.
