AN.2 External Angle

(Left or Right Hand) LH Shown

AN.2

AN.2.1

AN.2.2

AN.2.3

AN.2.4*

AN.2.5*

AN.2.6*

159¹

215²

102

Angle

30°

45°

60°

30°

45°

60°

Commonly used with

* Some products may not be available with dimension ‘A” 215mm.

1 Suitable for quarter bond without cutting

2 Suitable for half bond without cutting

Download related documents

AN.2.1 diagram PDF - 233 KB
AN.2.2 diagram PDF - 237 KB
AN.2.3 diagram PDF - 235 KB
AN.2.4 diagram PDF - 248 KB
AN.2.5 diagram PDF - 253 KB
AN.2.6 diagram PDF - 250 KB
... Show more (3)

Preparing download ... Download all (6)

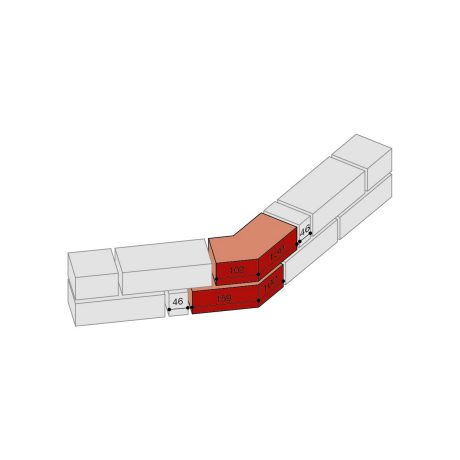

Incorrect use of quarter bond special in half bond wall, resulting in cut bricks being required to achieve the bonding pattern

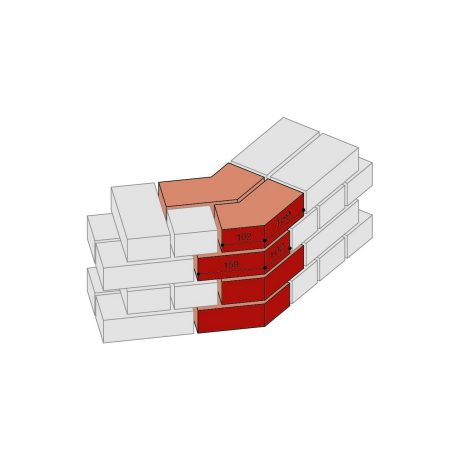

Correct use of quarter bond special in English bond (quarter bond) double skin wall

Correct use of half bond special in half bond wall

Angled bricks are available to maintain bonding patterns around a given angle. For stretcher (or half-bond), squint bricks may be used as their leg dimensions of 164mm and 51mm add up to 215mm, therefore the stretcher bond arrangement is consistent around the angle. Another option for maintaining stretcher bond is the external angle with leg lengths of 215mm and 102mm – these lengths also allow for the continuation of stretcher bond without the need for cutting bricks.

Quarter bonds such as English, Flemish, Header and the Garden Wall bonds differ to the above as they overlap on each course by a quarter (46mm). There are also angled bricks that will maintain a quarter bond without the need for cutting bricks. Please refer to the table above to see which bricks are suitable for half or quarter bonds without cutting.
