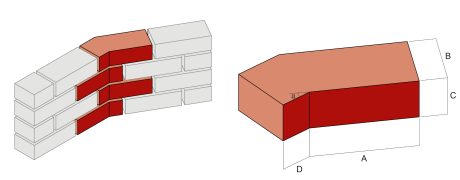

AN.3 Internal Angle

(Left or Right Hand) LH Shown

AN.3

AN.3.1

AN.3.2

AN.3.3

AN.3.4

AN.3.5

AN.3.6

AN.3.7*

AN.3.8*

AN.3.9*

A

164²

164²

164²

159¹

159¹

159¹

215²

215²

215²

B

102

102

102

102

102

102

102

102

102

C

65

65

65

65

65

65

65

65

65

D

51

51

51

102

102

102

102

102

102

Angle

30°

45°

60°

30°

45°

60°

30°

45°

60°

 * Some products may not be available with dimension ‘A” 215mm.

1 Suitable for quarter bond without cutting

2 Suitable for half bond without cutting

Download related documents

Preparing download ... Download all (9)

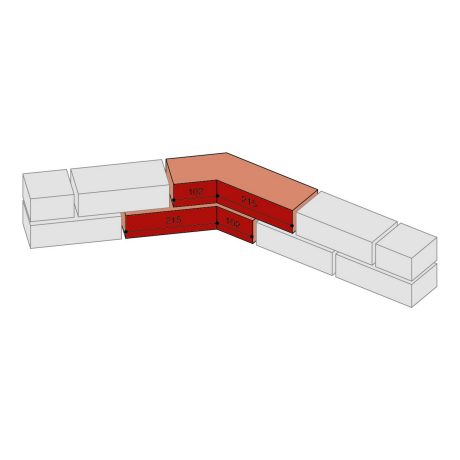

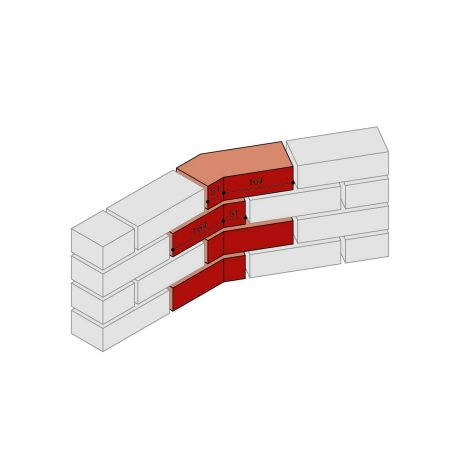

Angled bricks are available to maintain bonding patterns around a given angle. For stretcher (or half-bond), squint bricks may be used as their leg dimensions of 164mm and 51mm add up to 215mm, therefore the stretcher bond arrangement is consistent around the angle. Another option for maintaining stretcher bond is the external angle with leg lengths of 215mm and 102mm – these lengths also allow for the continuation of stretcher bond without the need for cutting bricks.

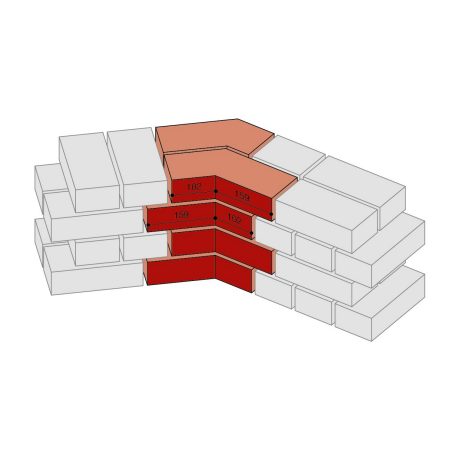

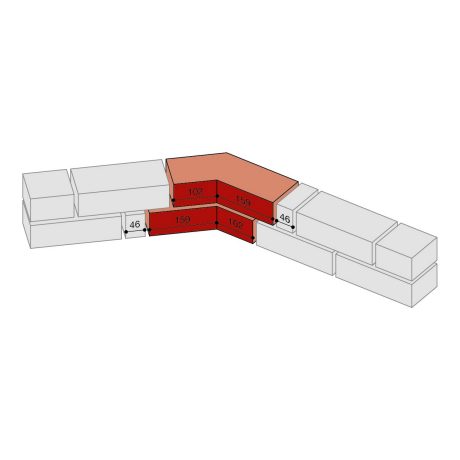

Quarter bonds such as English, Flemish, Header and the Garden Wall bonds differ to the above as they overlap on each course by a quarter (46mm). There are also angled bricks that will maintain a quarter bond without the need for cutting bricks. Please refer to the table above for which bricks are suitable for half and quarter bond without cutting.
